1/10 R/C Squash Van (Green & White Painted Body) (GF-02)

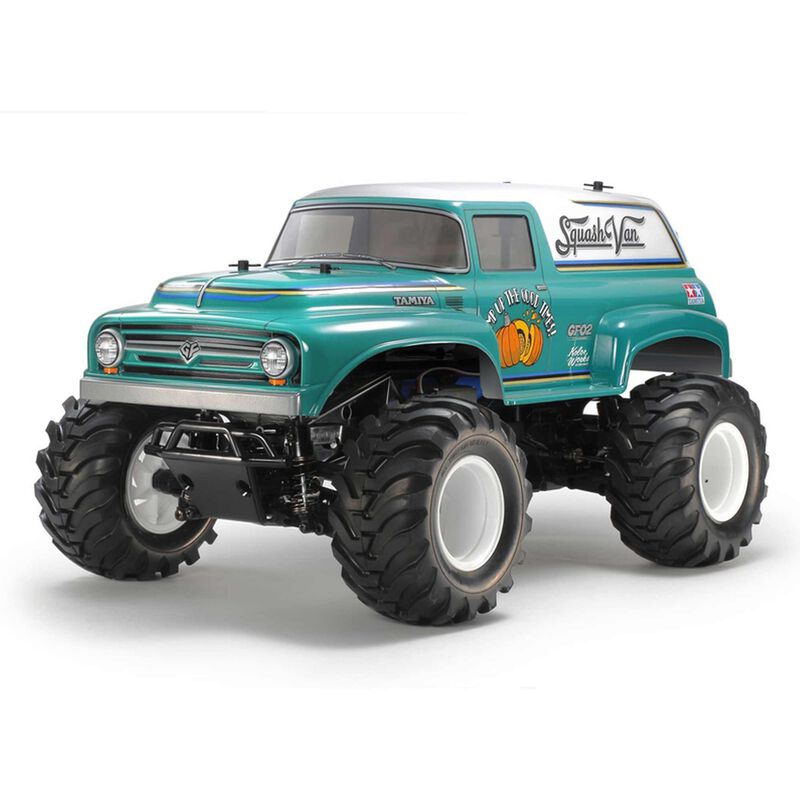

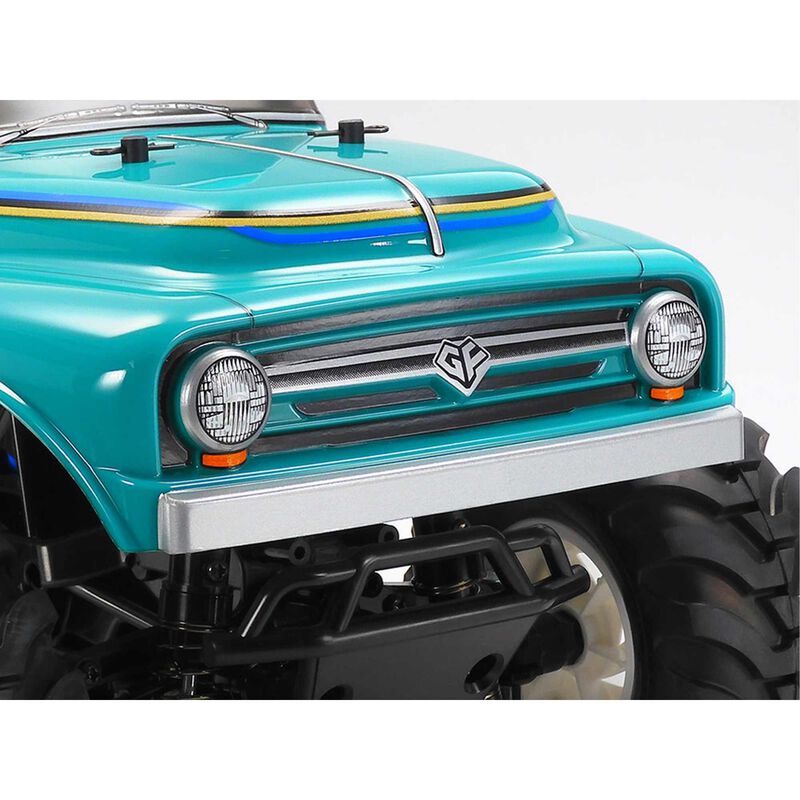

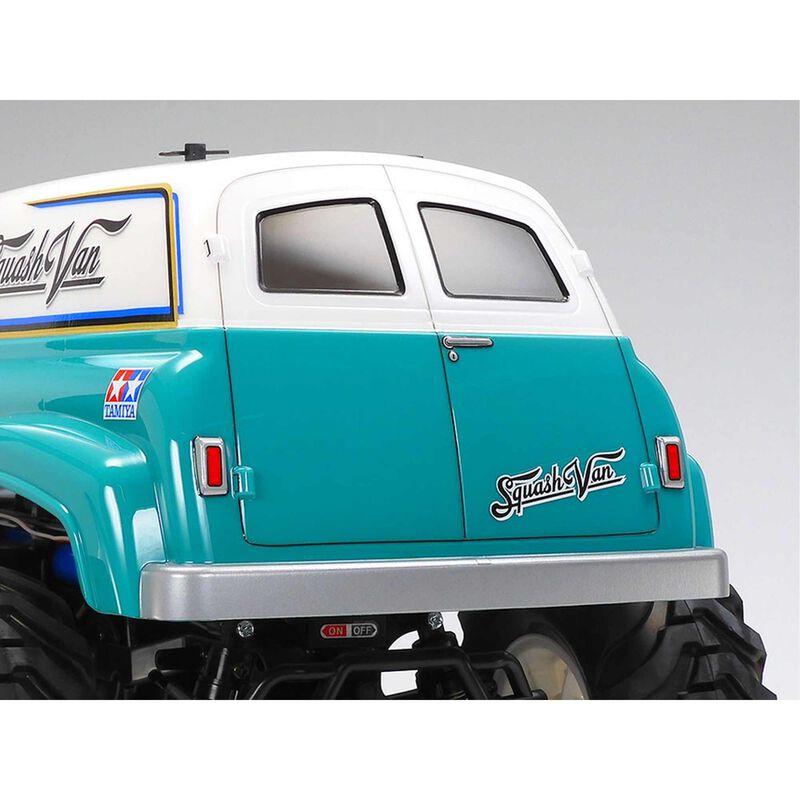

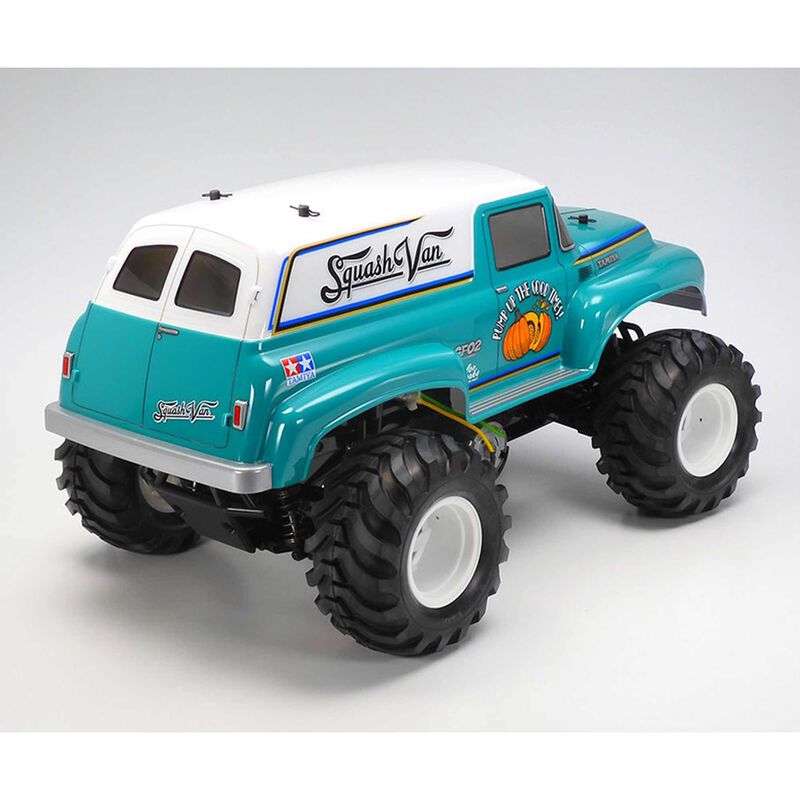

The polycarbonate body shell sits on top of the new gear-driven 4WD GF-02 chassis, which is a variant of the comical GF-01. While the GF-01 chassis features a comical design, the GF- 02 chassis employs a more realistic wheelbase and a frame with ladder and pipe motifs.

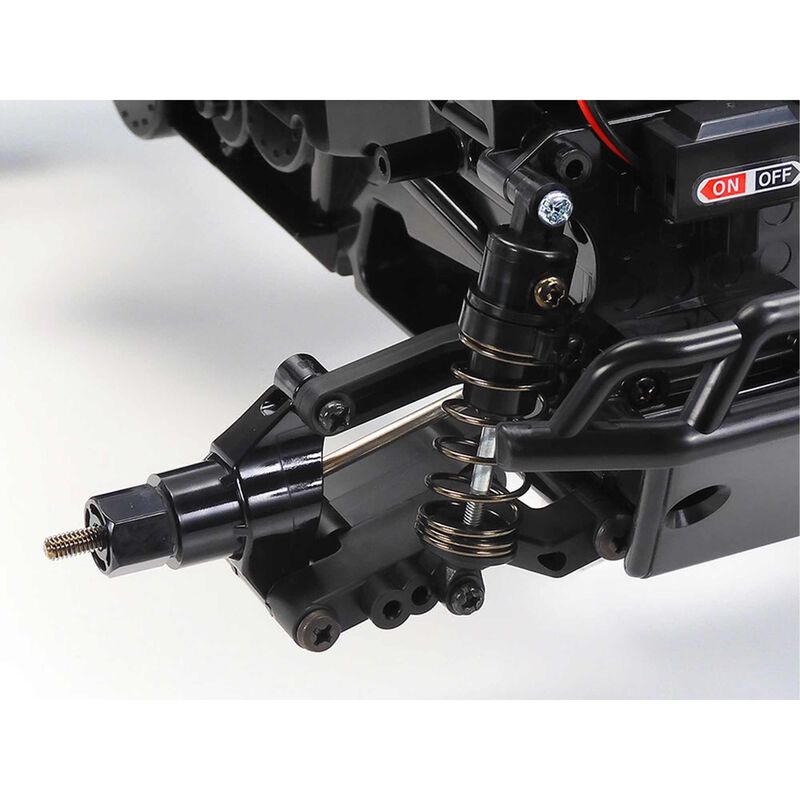

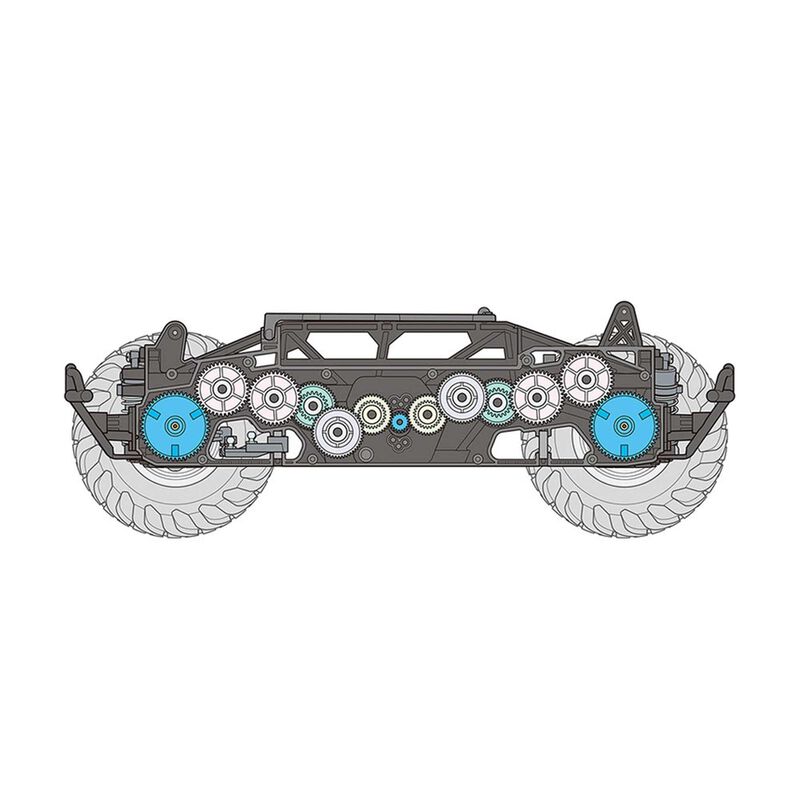

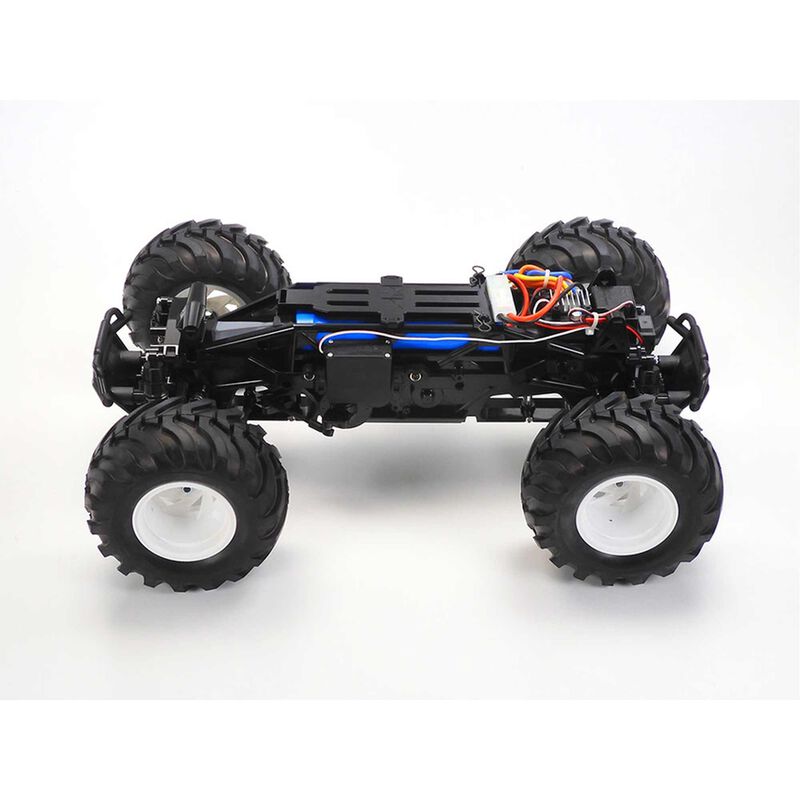

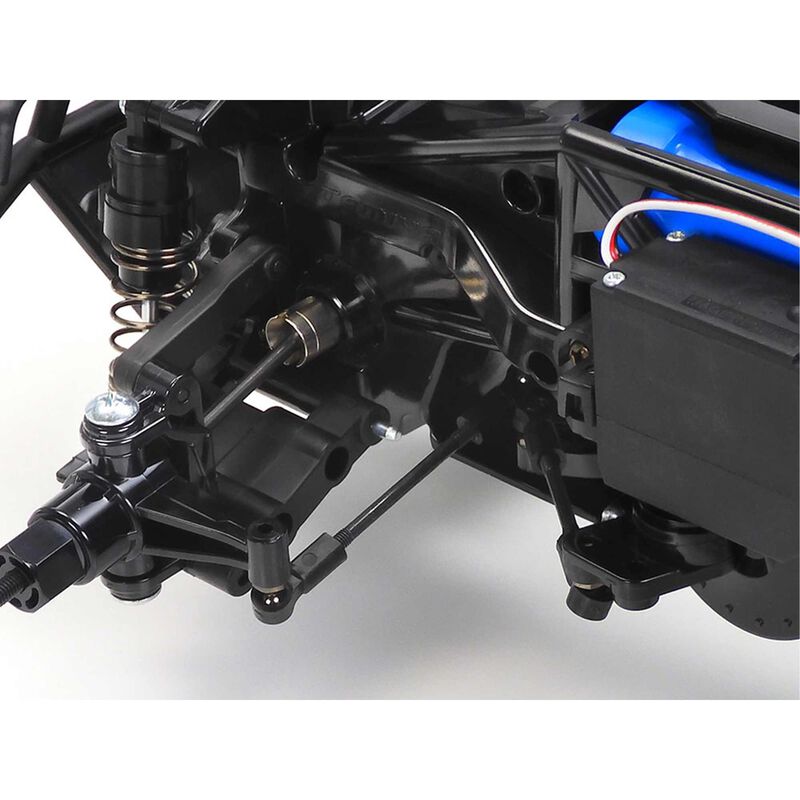

The gear-driven 4WD GF-02 chassis features its motor in a low, central position in the lightweight, durable monocoque frame, and transmits power to front and rear via gears. The long wheelbase and wide tread setup ensure stable off-road performance. The slim frame features ladder/pipe motifs and features integrated sealed gearboxes which help keep stones out. Front and rear gear differentials allow smooth cornering, while separately sold pinion gears offer a choice from three types of gear ratios, and a motor guard enhances reliability off-road. The 4-wheel double wishbone suspension employs four friction dampers, and the steering servo is positioned on the left with identical-length tie-rods.

Features

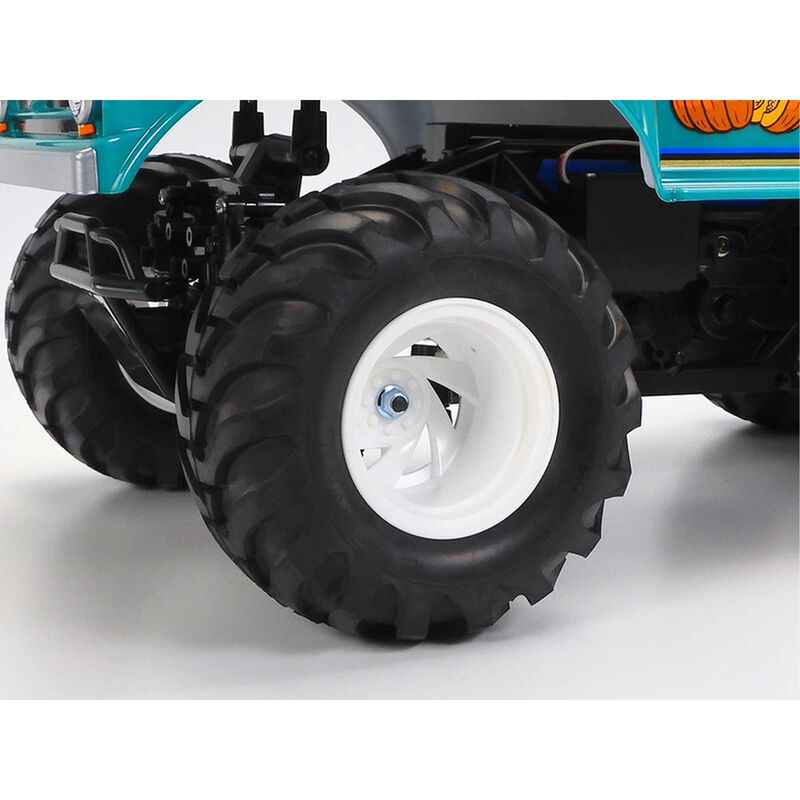

• V-Block pattern Block Tires 122.8mm diameter.
• 4WS-four-wheel steering compatible with separately sold third-party 4WS function radio.
• Body post position same as long wheelbase CC-02 chassis.
• Includes 540 brushed type motor and ESC.

Specification

Ball Bearings: Plastic bushing
Battery: Sold Separately

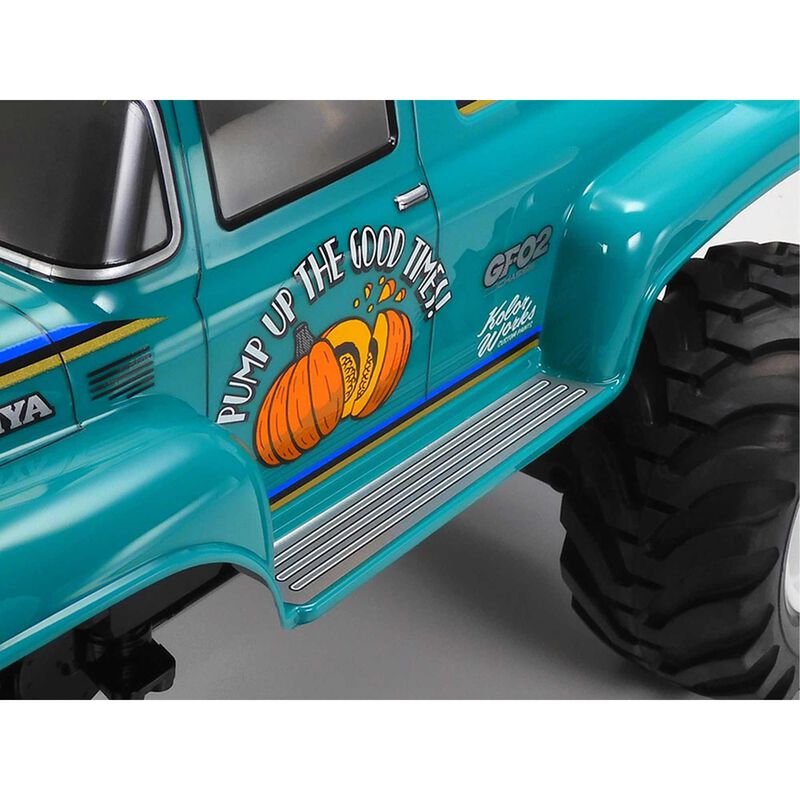

Body: Polycarbonate
Bushing Material: Plastic
Charger: Sold Separately
Chassis: ABS Plastic
Completion Level: Kit
Connector Type: Tamiya
Differential: Gear Diffs
Drive Type: Forward/Brake/Reverse
Drivetrain: 4WD
Front Track: 223 mm
Gear Ratio: Adjustable
Manufacturer #: 47497
Motor Size: 540
Motor Type: Brushed
Power Type: Electric
Radio: Sold Separately
Rear Track: 221 mm
Receiver: Sold Separately
Scale: 1/10
Servos: Sold Separately
Shock Type: Friction type
Speed Control: Included

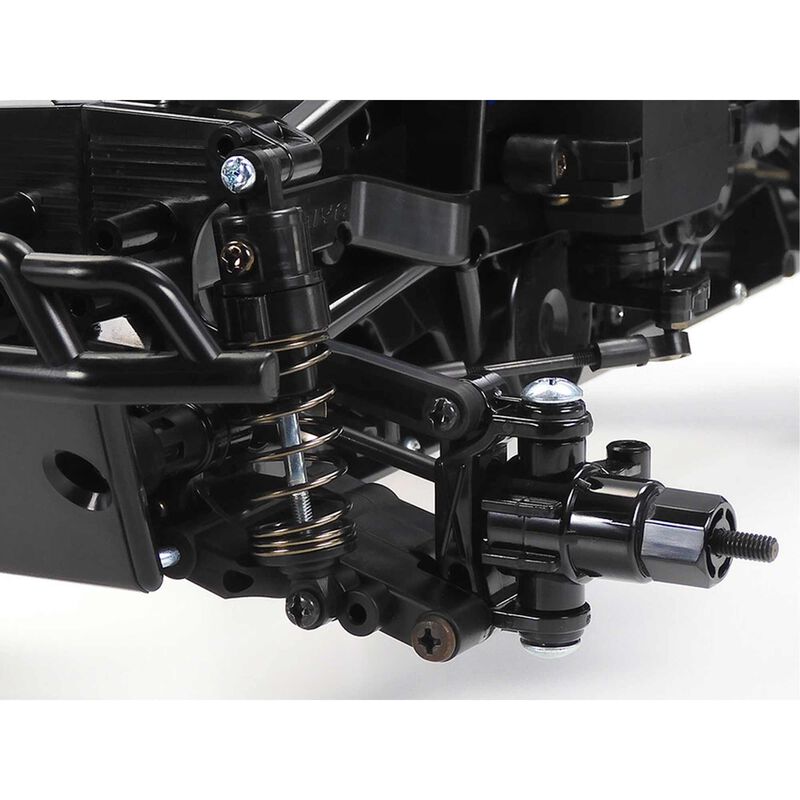

Suspension: Fully Independent Double Wishbone
Vehicle Size: Standard
Vehicle Type: Monster Truck
Wheelbase: 10.51" (267 mm).
