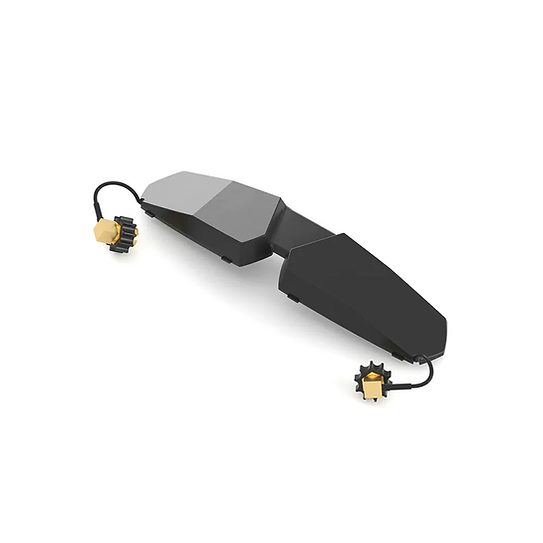

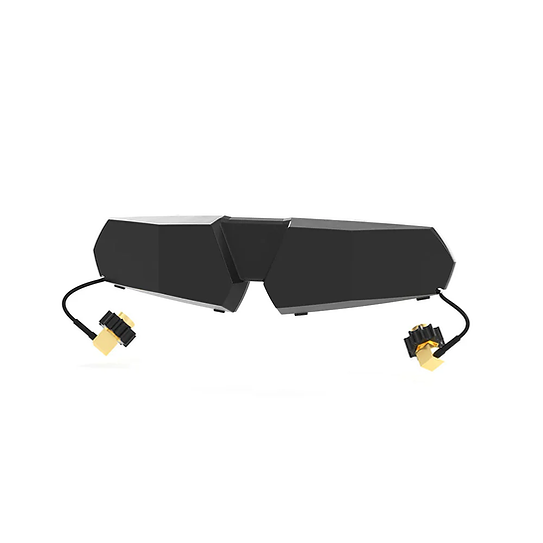

Ironquad Upgrade Antenna for Goggle X

The Ironquad Walksnail Goggle X (Avatar HD) is a premium FPV headset built for high-speed, low-latency drone experiences. Featuring a crisp 1080p display at up to 100fps, built-in gyro for head tracking, and adjustable IPD and diopter, it provides an immersive and customizable view. Lightweight and ergonomic, it supports HDMI input/output, SD card recording, and a transmission range of over 4km, making it ideal for both professional and hobbyist pilots.

Features

• High-Resolution Display: 1080p at 100fps for smooth FPV experience
• Low Latency: Average 22ms for real-time responsiveness
• Customizable Vision: Adjustable IPD (57–72mm) and diopter (+2 to –6)
• Lightweight & Comfortable: 290g with PU wide foam for extended use
• Long Range: Transmission distance over 4km with 8 channels
• Versatile Connectivity: HDMI input/output, AV in, micro SD support up to 256GB
• Advanced Tracking: Built-in gyro and infrared sensing for precise head tracking
• Future Ready: Built-in Wi-Fi and Bluetooth modules (in development)

Specifications

• Model: Avatar HD Goggles X
• Communication Frequency: 5.725–5.850GHz
• Transmitter Power (EIRP): FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
• I/O Interface: HDMI Out, HDMI Input, 5Pin 3.5mm Audio Port, DC5.5×2.1mm, Micro SD Card Slot
• Transmission Resolution: 1080p 100fps / 1080p 60fps / 720p 100fps / 720p 60fps
• Code Rate: Max 50 Mbps
• Min. Latency: Average 22ms
• Average Gain: 2dBi
• Polarization: LHCP
• Transmission Distance: ＞4km
• Channel: 8
• Screen Resolution: 1920×1080 / 100Hz
• Screen Material: OLED
• IPD Mechanical Range: 57–72mm
• Adjustable Focus Range: +2.0 to –6.0 Diopter
• FOV: 50°
• Power Input: 7–26V (2S–6S)
• SD Card Support: Up to 256GB
• System: Avatar HD system
• Wide Foam Material: PU
• Built-in Wi-Fi: Yes
• Built-in Gyro: Yes
• Built-in Bluetooth: Yes

Packing List

• Walksnail Avatar HD Goggles X ×1
• Wide Foam (PU) ×1
• Lens Cleaning Cloth ×1
• XT60 to DC5.5×2.1mm Power Cord ×1
• Storage Box ×1
• Audio Cable ×1
