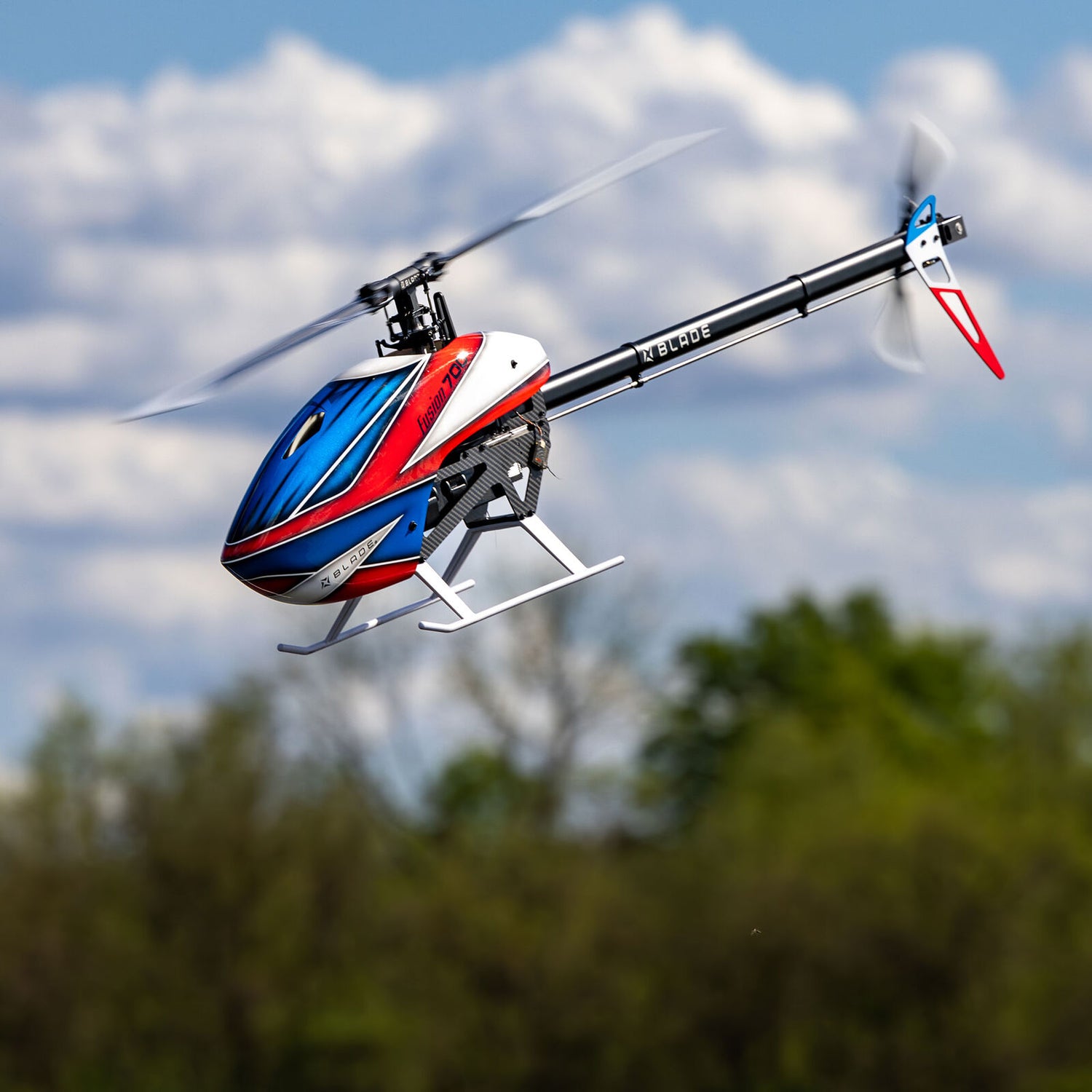

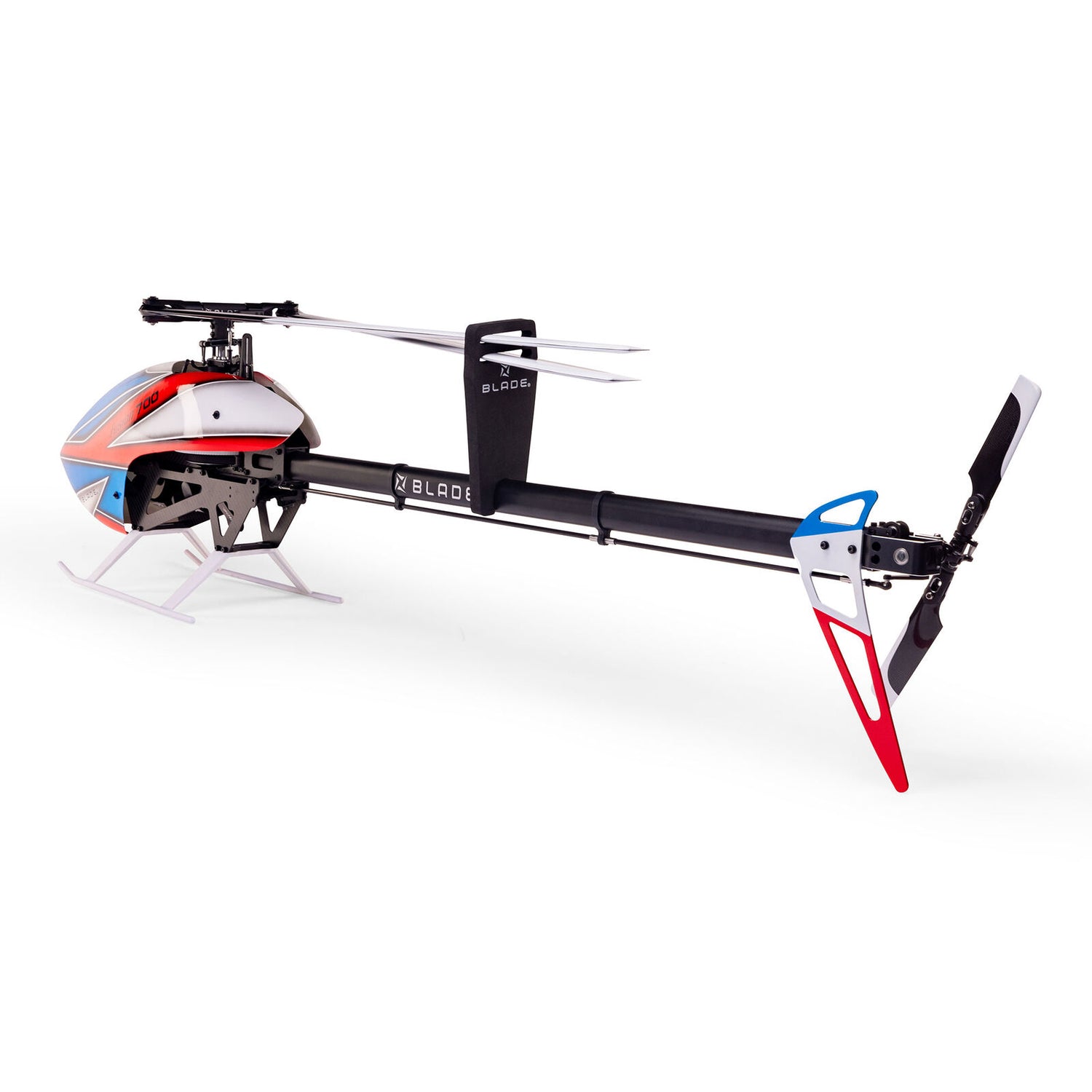

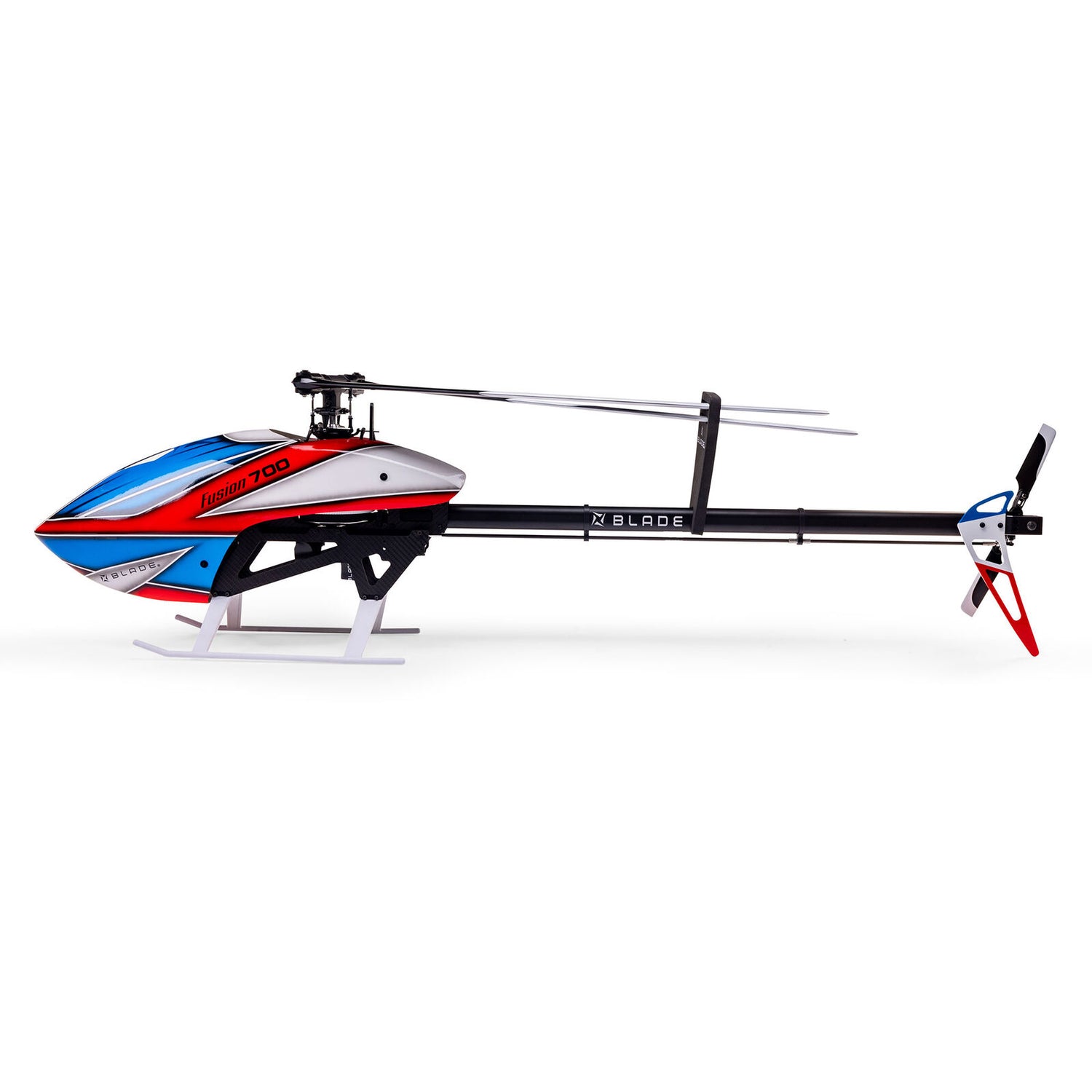

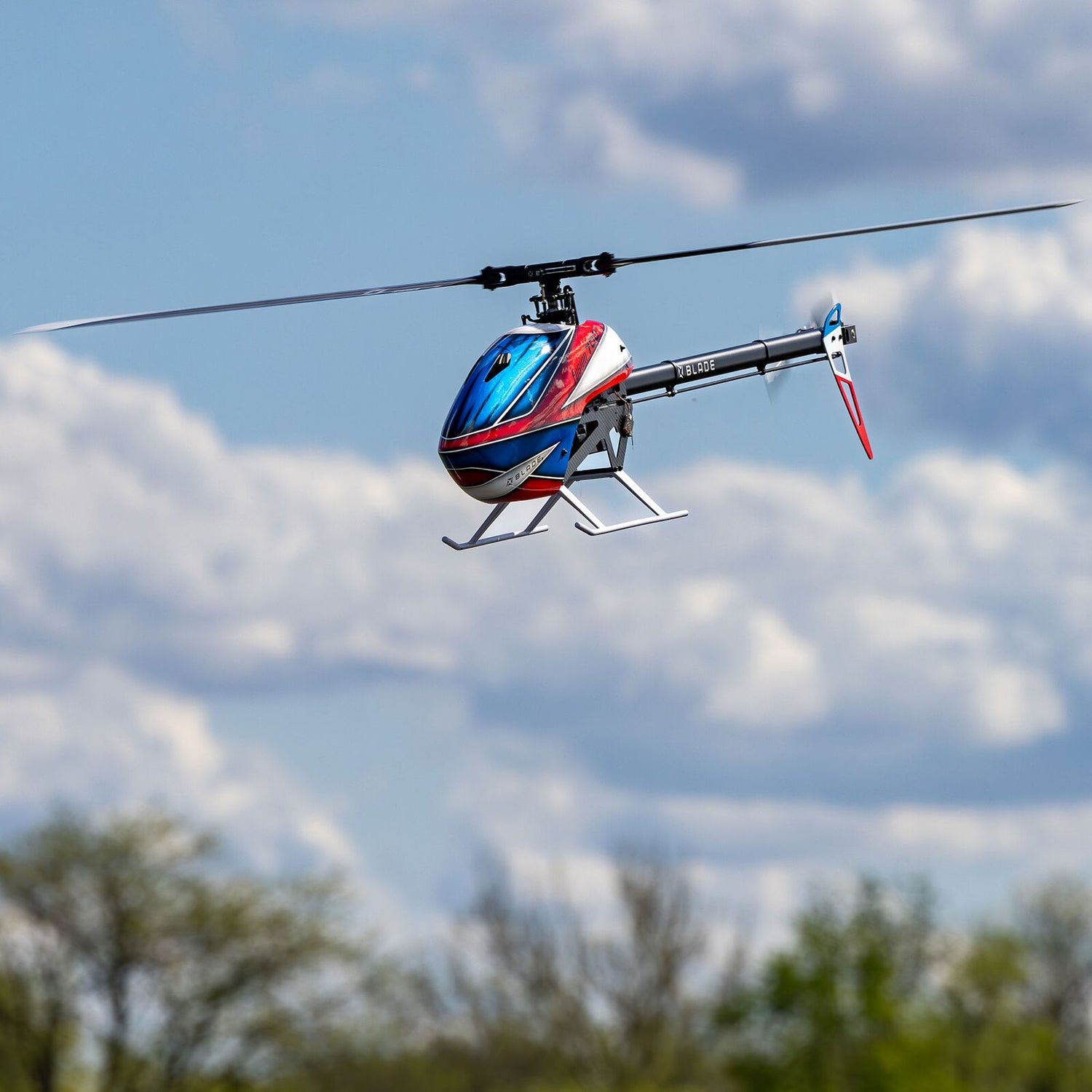

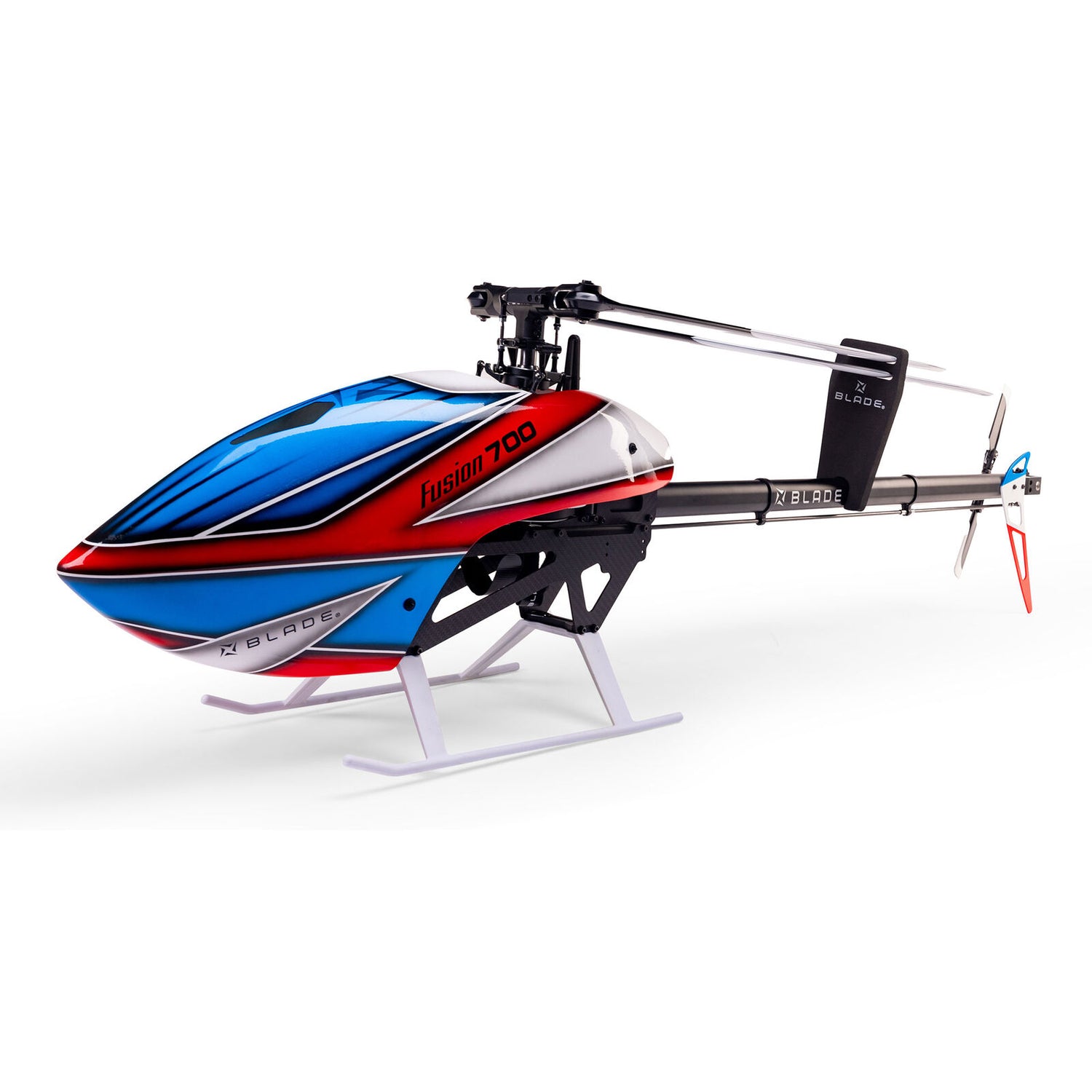

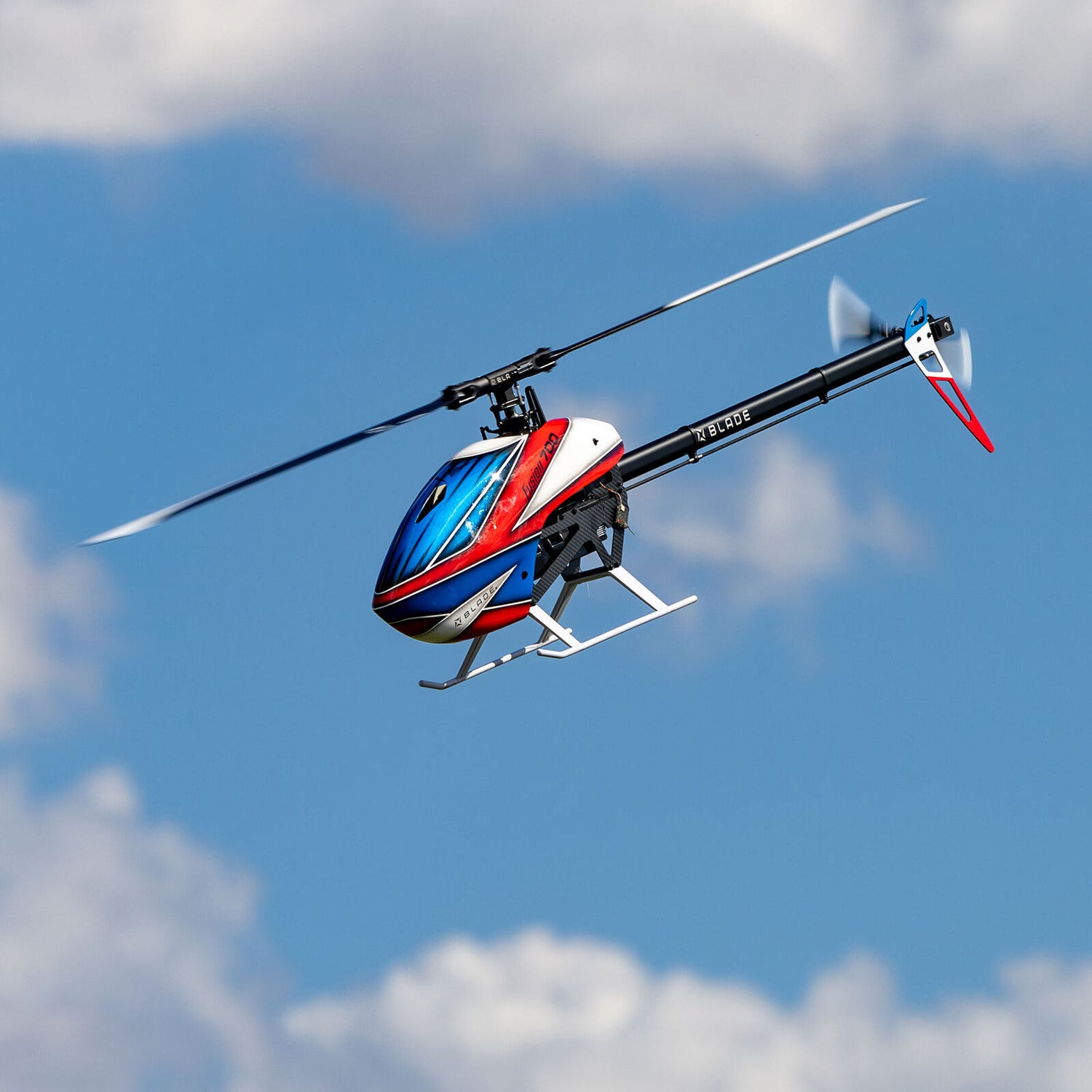

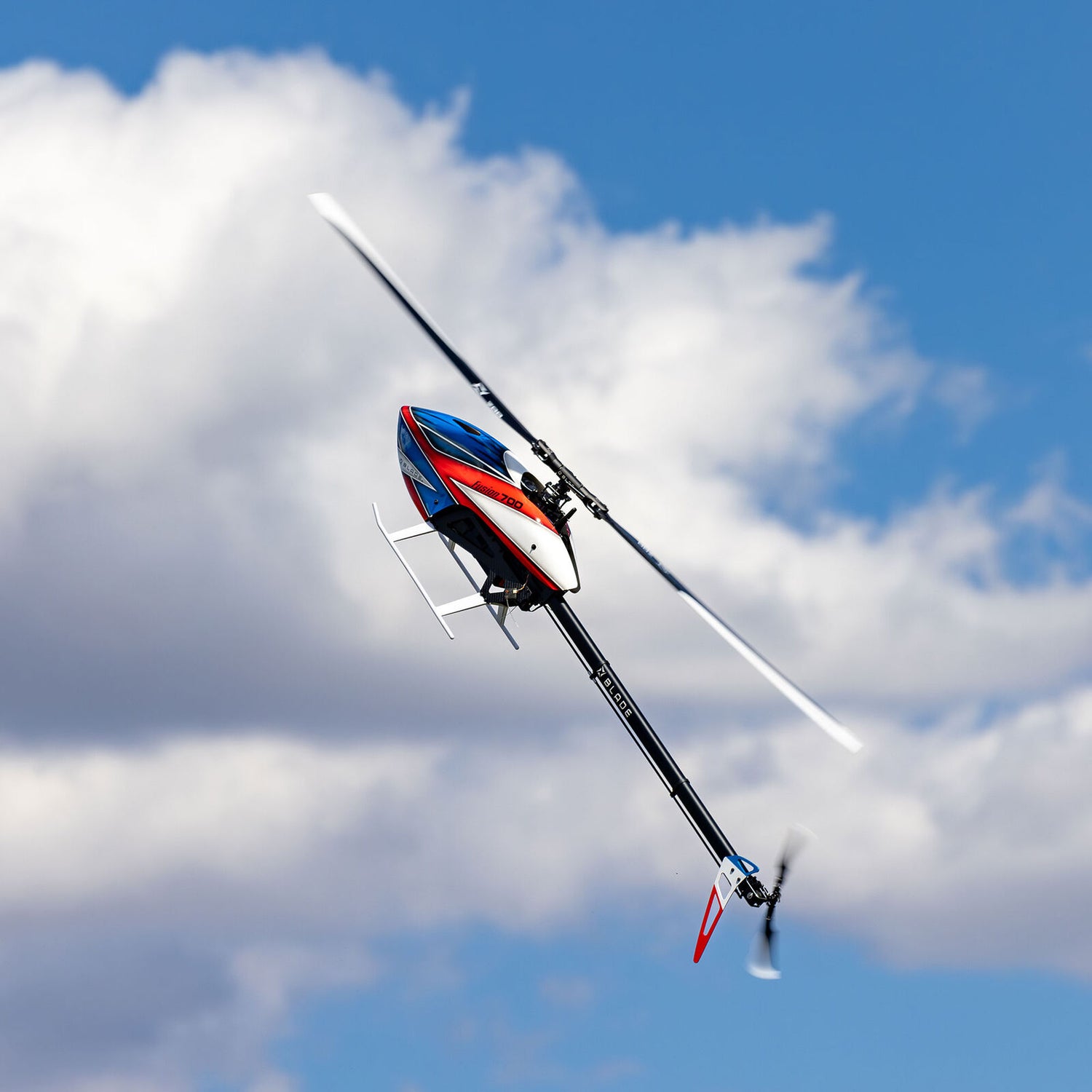

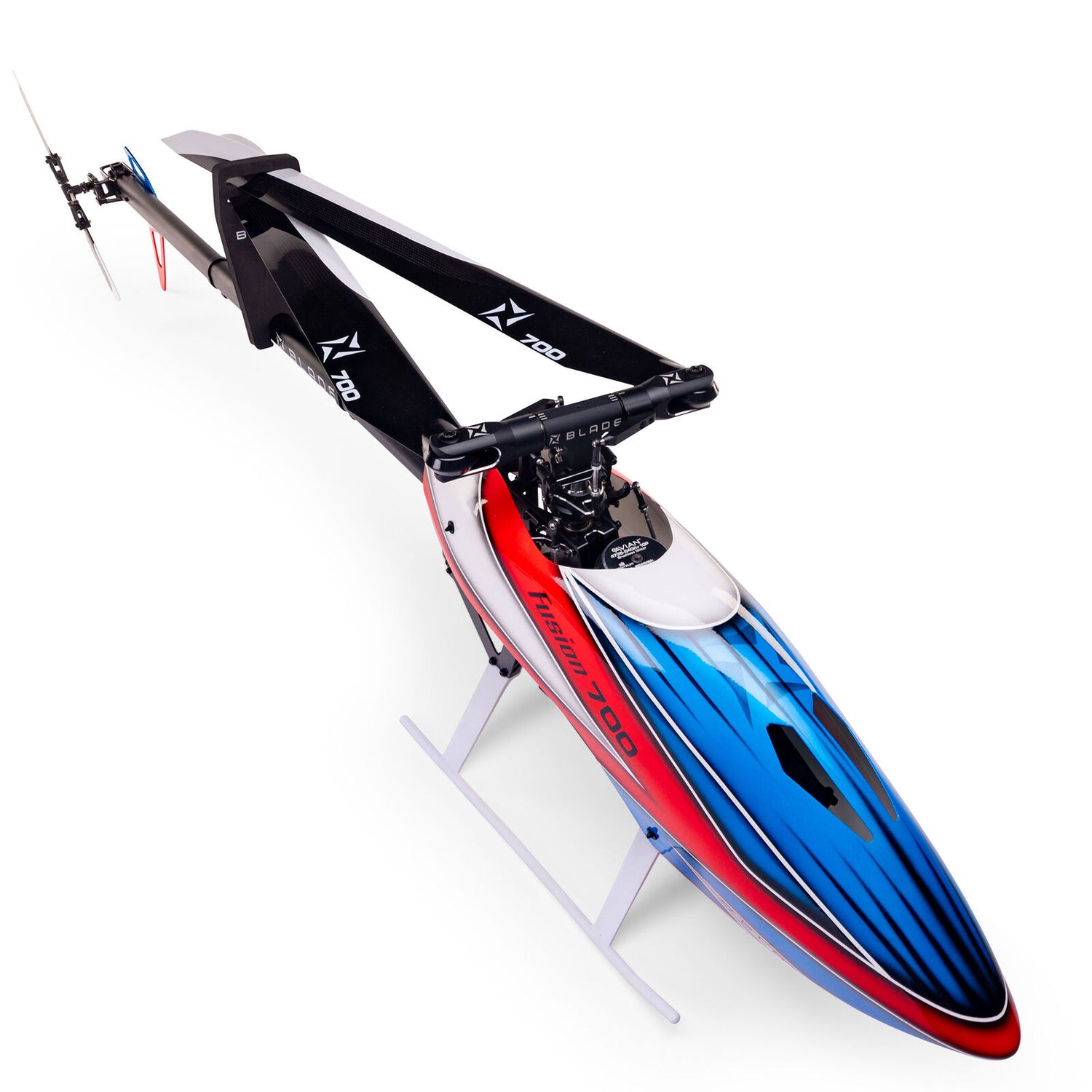

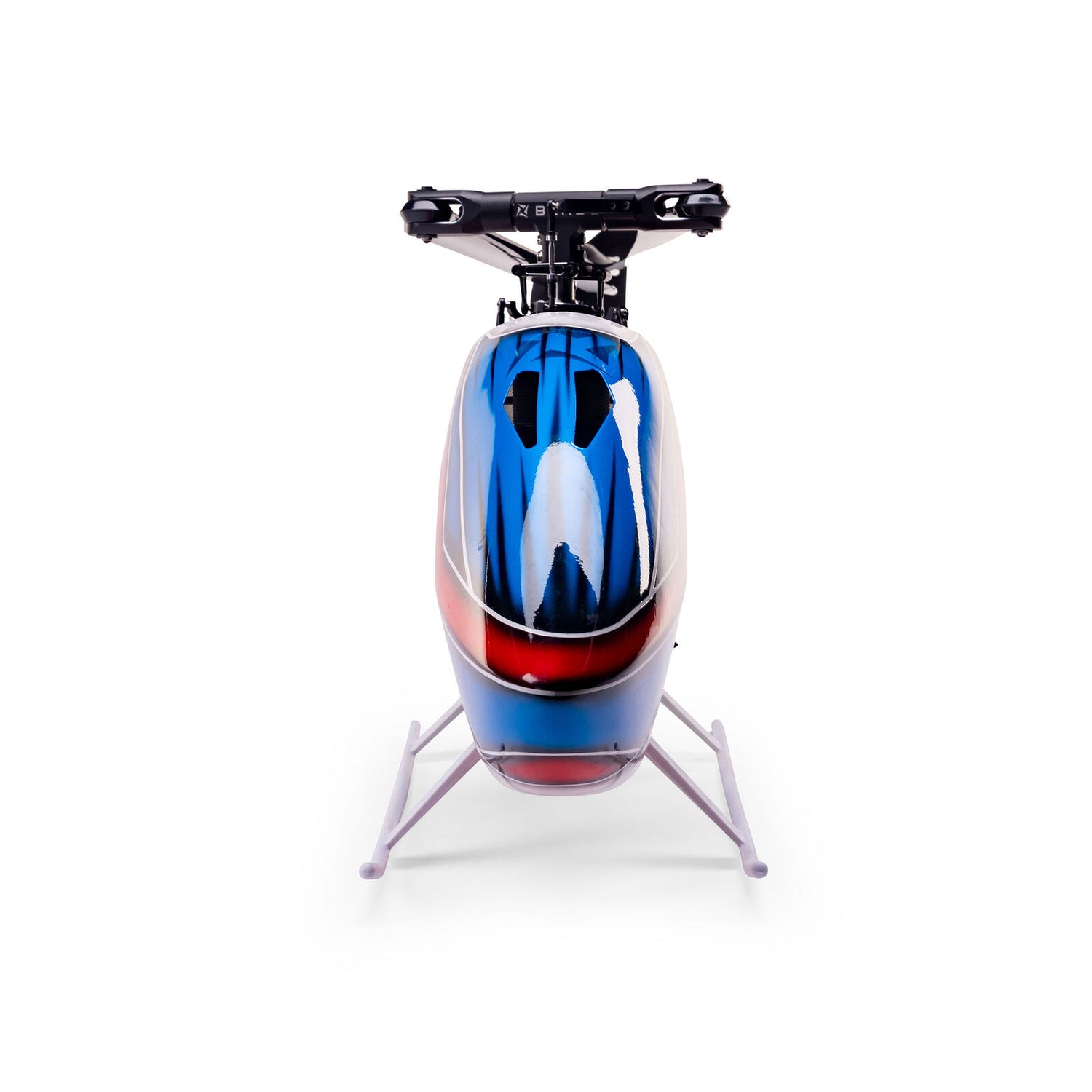

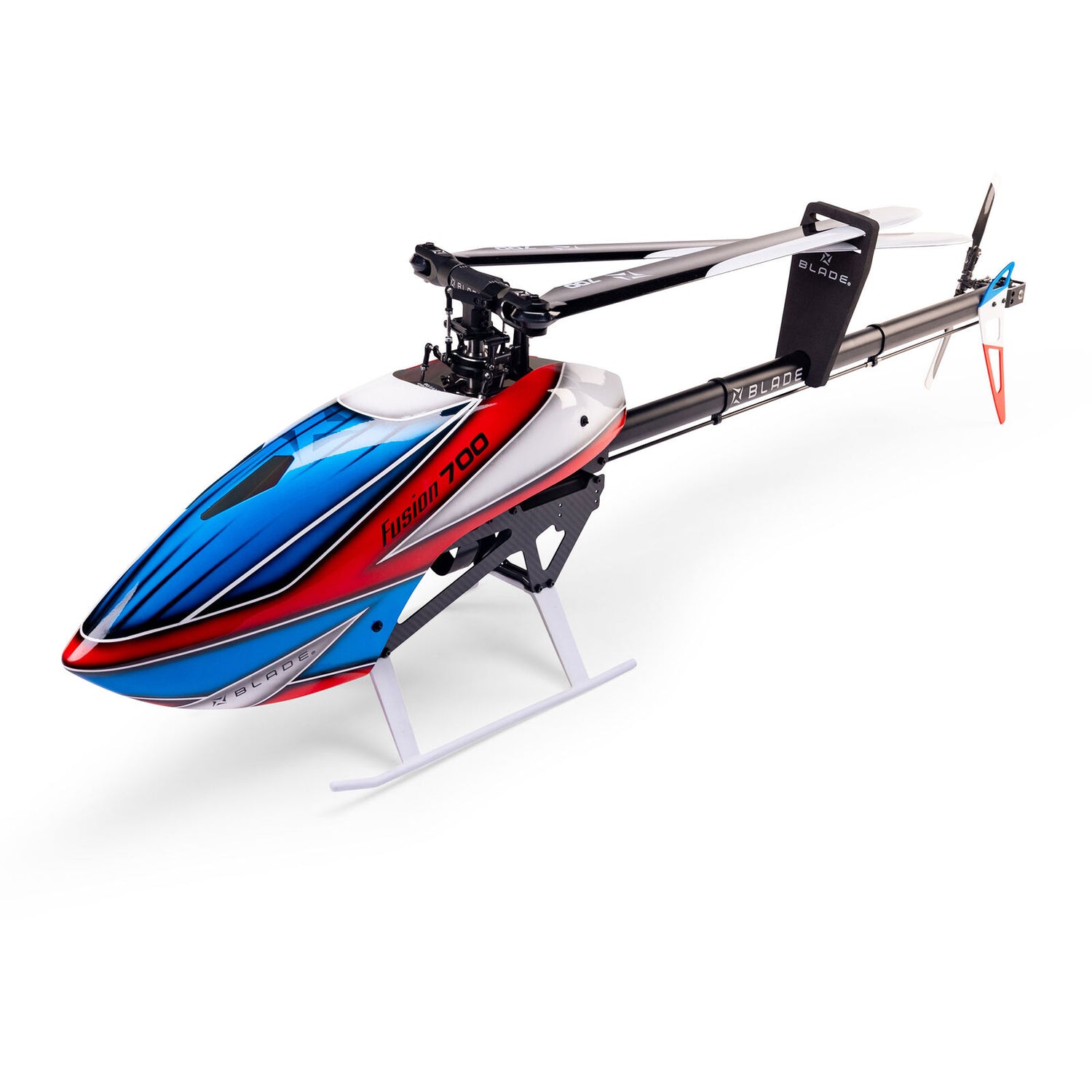

The Blade® Fusion 700 Kit with Motor and Blades delivers the ultimate 700-sized collective pitch helicopter experience. Its durable carbon fiber and aluminum airframe, paired with the included 4735-540Kv brushless outrunner motor and carbon fiber 700mm main rotor and 105mm tail rotor blades, provides outstanding performance for sport, precision, and aggressive 3D flying. This kit allows pilots to customize the helicopter with their choice of ESC, servos, flight controller, and receiver for a fully tailored setup.
Features
- Extremely strong carbon fiber and aluminum airframe
- High-strength steel 15mm main shaft and 10mm spindle with metal head components
- Efficient Delrin® helical main gear paired with steel pinion for quiet and reliable performance
- Ovalized aluminum tail boom eliminates need for boom supports
- 8mm wide belt for driven tail with adjustable tension
- High-strength steel 6mm tail shaft with metal bell crank and grips
- Aluminum tail case with metal tail drive pulley
- 5mm carbon fiber tail pushrod for precise tail control
- Optional orange-painted canopy, carbon fiber tail fin, and black landing gear for customization
- Includes 4735-540Kv outrunner motor compatible with 12S LiPo batteries
- Precision-machined Delrin® helical main gear with 11- and 12-tooth pinion gears
- Black anodized aluminum swashplate and components
- 700mm carbon fiber main rotor blades and 105mm tail rotor blades
- Sprag autorotation clutch and machined rotor head dampers with o-rings
- 2-piece white molded landing gear and painted fiberglass canopy for excellent visibility
- Reinforced aluminum main shaft bearing block assembly
- Sliding carbon fiber battery tray with positive locking mechanism
- Belt-driven tail rotor for reduced weight, fewer parts, and easier maintenance
- Hidden tail servo for added protection and sleek appearance
Specifications
- Assembly Time: 5–7 Hours
- Battery/Charger: Sold separately
- Completion Level: Kit
- Gear Ratio: 9.33–10.18
- Main Motor Type: Brushless
- Main Rotor: Diameter 62" (1575 mm), Blade Length 27.56" (700 mm), Collective Pitch Flybarless
- Tail Motor Type: Belt Drive
- Tail Rotor: Diameter 11.5" (292 mm), Blade Length 4.13" (105 mm)
- Main Frame/Canopy Material: Carbon Fiber / Fiberglass
- Tail Blade Material: Carbon Fiber
- Swashplate Type: 120° CCPM
- Power Type: Electric
- Product Dimensions: 54.5" L × 14.88" H × 8.5" W
- Product Weight: 12.5 lb (5670 g) with recommended battery
- Receiver/Servos/Speed Control: Sold separately
- Recommended Motor Battery: 12S 44.4V 4000–5000mAh LiPo (SPMX-1091)
-
Skill Level: Level 3
