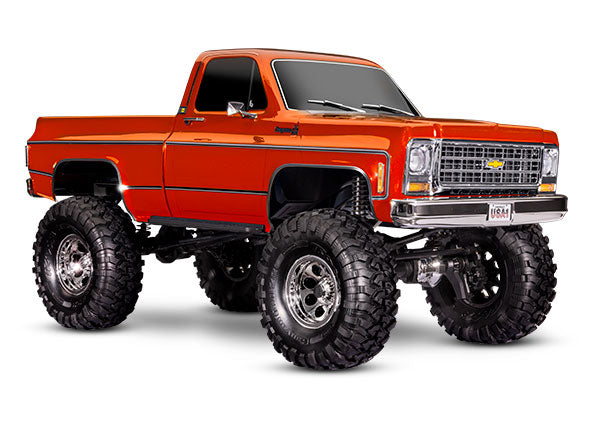

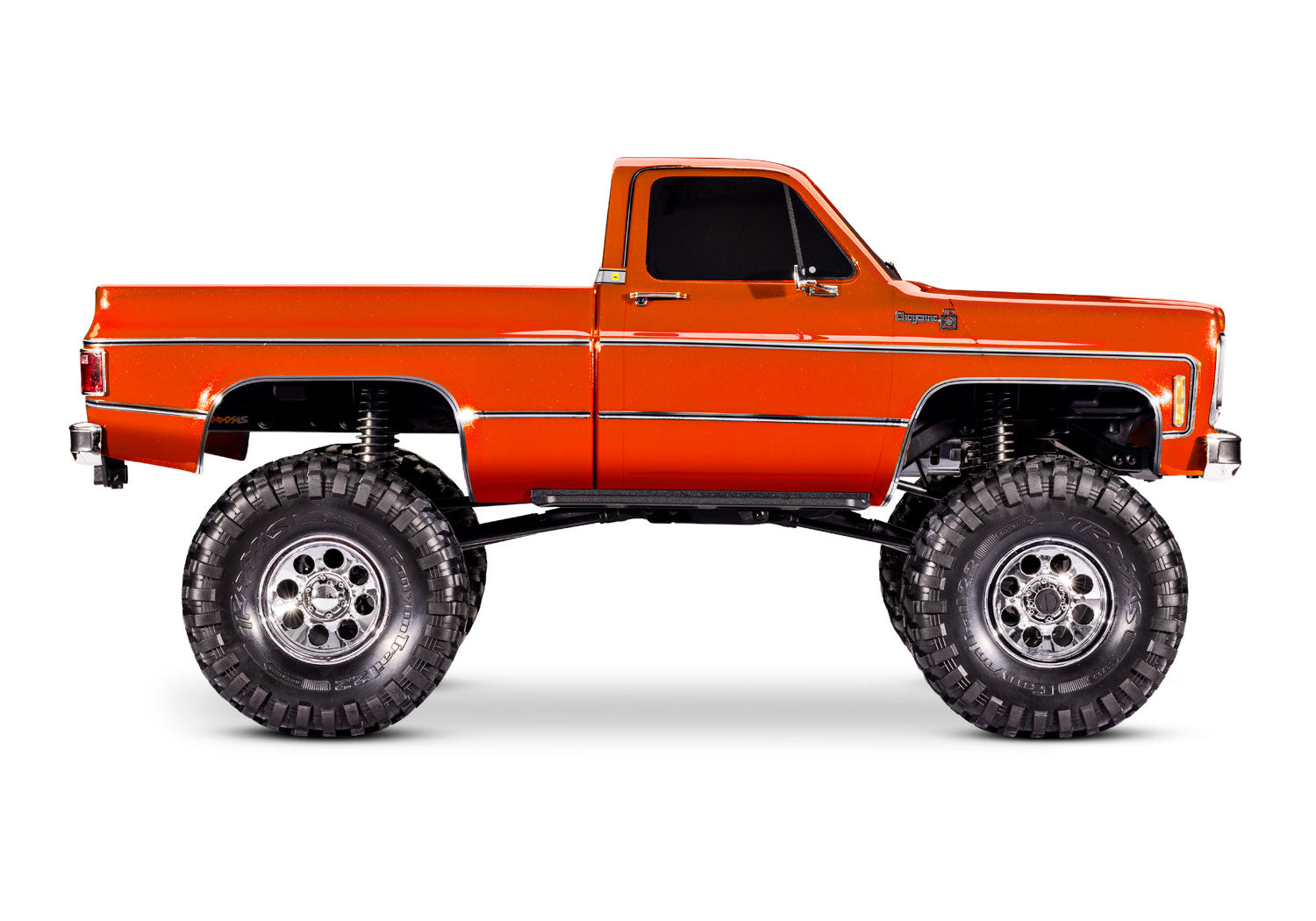

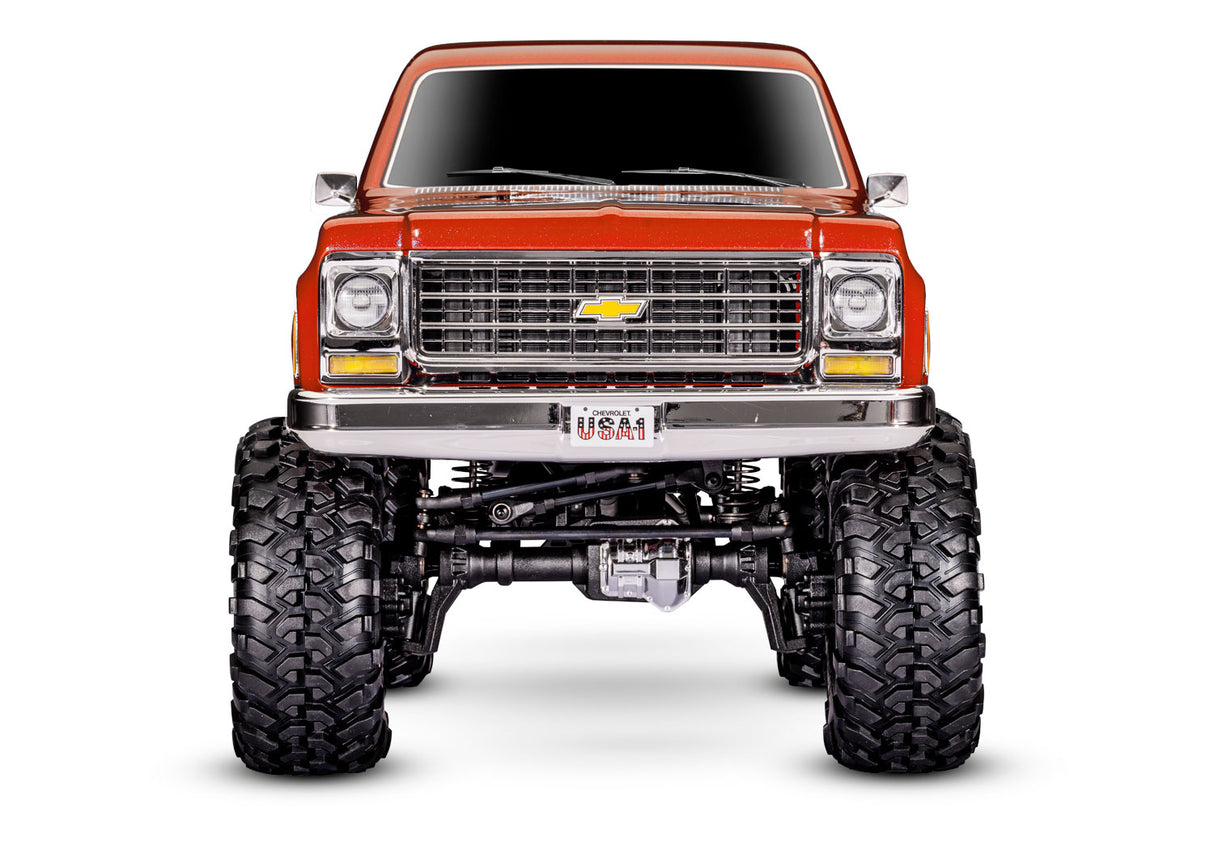

Traxxas TRX-4® Chevrolet K10 Cheyenne High Trail Edition 4WD Electric Truck

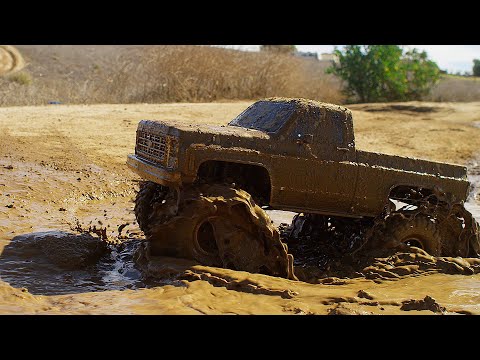

Get ready for extreme scale adventure with the TRX-4® Chevrolet® K10 High Trail Edition. This lifted, highly detailed K10 replica stands over an inch taller than a standard TRX-4, thanks to its factory-installed Long Arm Lift Kit and oversized 2.2” tires. Its extended 336 mm wheelbase enhances stability and off-road performance, allowing you to tackle mud bogs, streams, and larger obstacles with ease. With Traxxas-Tough™ durability, stunning scale looks, and extreme all-terrain capability, the K10 High Trail Edition is built for serious trail fun.

Features

• Officially licensed 1979 Chevrolet K10 pickup body, LED-ready headlights & tail lights
• Clipless body mounting for smooth, scale appearance

• Powerful Titan™ 21T reverse-rotation motor with cooling fan
• Portal axles for increased ground clearance, reduced torque twist, and improved axle geometry
• Full-time shaft-driven 4WD drivetrain
• Traxxas Link app compatible via optional module (#6511)
• Stores settings for up to 30 Traxxas Link-enabled models
• Extended 336 mm wheelbase for improved stability
• Innovative hinged battery compartment for easy access and compatibility with full-size long battery packs
• Two-speed high/low range transmission with remote shifting
• Requires battery & charger (sold separately).

Specifications

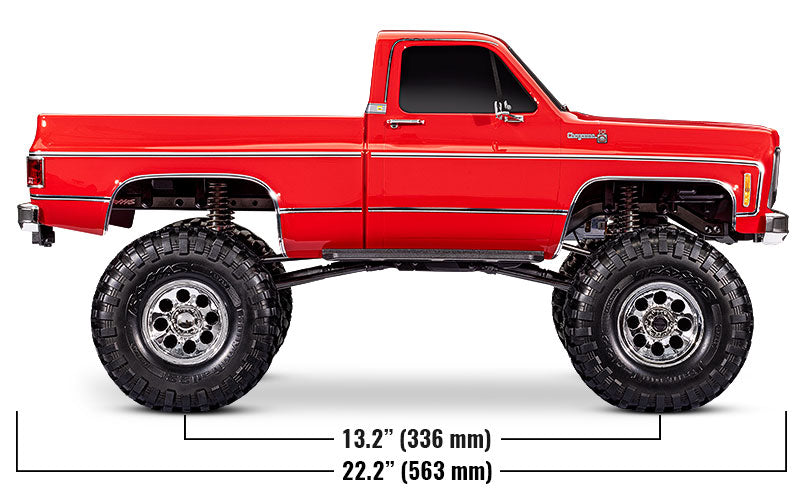

• Length: 22.20 in (563 mm)

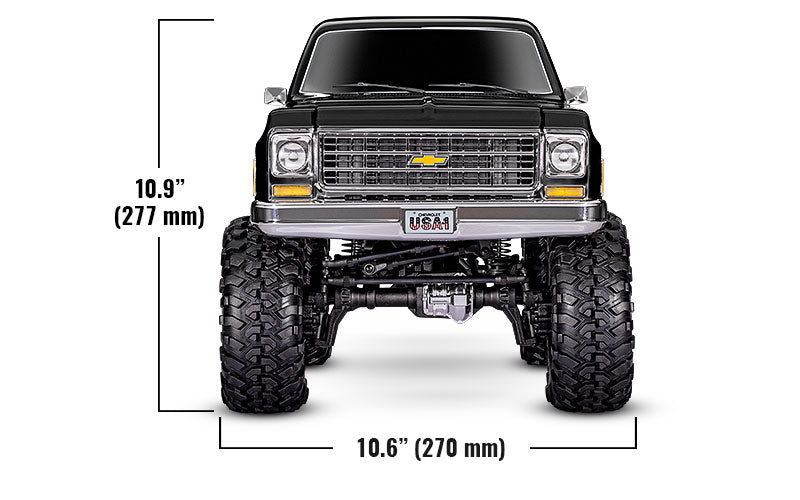

• Front Track: 10.60 in (270 mm)
• Rear Track: 10.60 in (270 mm)
• Center Ground Clearance: 4 in (99 mm)
• Weight (without battery): 7.38 lb (3.35 kg)
• Overall Height: 10.89 in (277 mm)
• Wheelbase: 13.23 in (336 mm)
• Approach Angle: 70°
• Departure Angle: 52°
• Breakover Angle: 67°
• Front Shock Length: 4.33 in (110 mm)
• Rear Shock Length: 4.33 in (110 mm)
• Front Wheels: 2.2 × 1.34 in (56 × 34 mm)
• Rear Wheels: 2.2 × 1.34 in (56 × 34 mm)
• Front Tires: 5.3 × 2.14 in (135 × 54 mm)
• Rear Tires: 5.3 × 2.14 in (135 × 54 mm)
• Hex Size: 12 mm
• Speed Control: XL-5 HV
• Motor: 21T Reverse Rotation
• Transmission: 2-speed Hi-Lo, remote shifting
• Gear Pitch: 32P
• Differential Type: 4-gear, remote locking
• Chassis: Steel ladder frame with nylon composite crossmembers
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft-driven 4WD
• Steering: Chassis-mounted servo
• Servo: 2075X Metal Gear
• Transmitter: TQi™ 2.4 GHz 4-channel
• Receiver: TRA6533
• Skill Level: 1
• Battery Tray: 158.75 × 47 × 23/26 mm.
