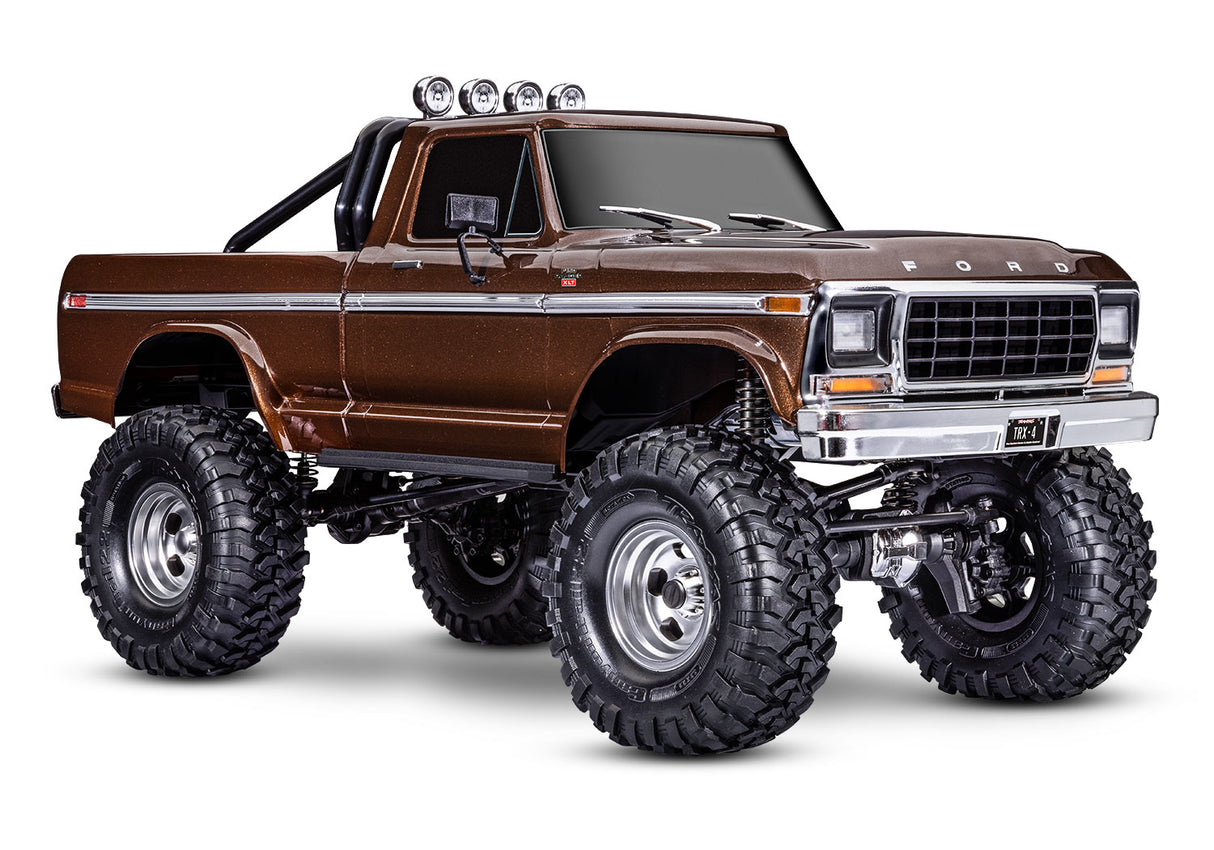

Traxxas TRX-4® Ford F-150 High Trail Edition 4WD Electric Truck

The TRX-4® 1979 Ford® F-150® Ranger XLT is the latest model to receive the High Trail Edition upgrade, featuring a detailed replica body and a lifted stance. With a factory-installed Long Arm Lift Kit and oversize 2.2" tires, the High Trail Edition raises ground clearance more than an inch over standard TRX-4 models. The extended 336 mm wheelbase further enhances stability and off-road control. Combining extreme trail capability, classic Ford styling, and Traxxas-Tough™ durability, the TRX-4 F-150 High Trail Edition is built for drivers who want premium performance and scale realism.

Features

• Officially licensed 1979 Ford F-150® Ranger XLT body
• Clipless body mounting system; scale details mount directly to the frame
• Titan™ 21T reverse-rotation motor with internal cooling fan
• Portal axles for increased ground clearance, reduced torque twist, and improved geometry
• Full-time shaft-driven 4WD with tough 6 mm stub axles
• Factory-installed Long Arm Lift Kit providing over 1" additional ground clearance
• Compatible with oversize 2.2" wheels and tyres
• Extended 336 mm wheelbase for added stability
• Hinged battery compartment for quick access; fits long full-size packs
• Two-speed high/low transmission with remote shifting
• Extended aluminum GTS shocks
• Oversize 2.2" slotted mag wheels with pre-mounted Canyon Trail tires (trail-tuned foams)
• Patented O-ring sealed waterproof receiver box
• Sealed ball bearings
• Rust-resistant black-oxide hex hardware
• Requires battery & charger (sold separately)

Specifications

• Length: 22.30 in (566 mm)
• Front Track: 10.60 in (270 mm)
• Rear Track: 10.60 in (270 mm)
• Center Ground Clearance: 4 in (99 mm)
• Weight (without battery): 7.34 lb (3.33 kg)
• Height: 10.82 in (275 mm)
• Wheelbase: 13.23 in (336 mm)
• Approach Angle: 73.5°
• Departure Angle: 49.67°
• Breakover Angle: 67°
• Front Shock Length: 4.33 in (110 mm)
• Rear Shock Length: 4.33 in (110 mm)
• Front Wheels: 2.2 × 1.34 in (56 × 34 mm)
• Rear Wheels: 2.2 × 1.34 in (56 × 34 mm)
• Front Tires: 5.3 × 2.14 in (135 × 54 mm)
• Rear Tires: 5.3 × 2.14 in (135 × 54 mm)
• Hex Size: 12 mm
• Speed Control: XL-5 HV
• Motor: 21T reverse-rotation brushed
• Transmission: 2-speed high/low with remote shifting
• Gear Pitch: 32-pitch
• Differential Type: 4-gear, remote locking
• Chassis: Steel ladder frame with nylon composite crossmembers
• Brake Type: Electronic “Hill Hold”
• Drive System: Shaft-driven 4WD
• Steering: Chassis-mounted servo
• Servo: 2075X metal-gear
• Transmitter: TQi™ 2.4 GHz 4-channel
• Receiver: 6533
• Skill Level: 1
• Battery Tray: 158.8 mm (L) × 47 mm (W) × 23/26 mm (H).
