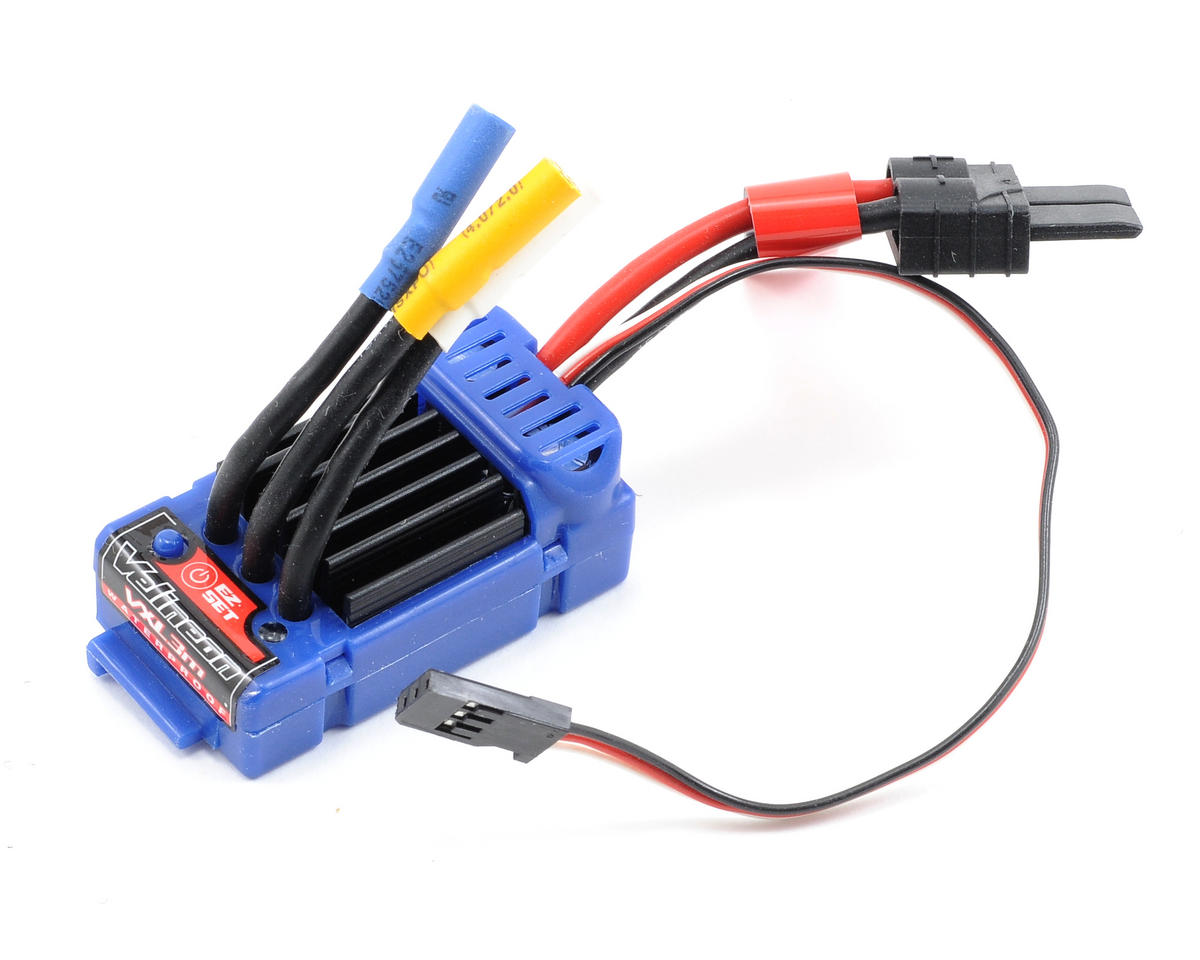

Traxxas - Velineon VXL-3M Waterproof Brushless Electronic Speed Control

The Traxxas Velineon VXL-3m is a high-performance forward/reverse sensorless brushless ESC designed for smooth, precise, and powerful operation in 1/10 scale vehicles. This ESC simplifies brushless technology with easy-to-use built-in profiles and intuitive programming. Featuring Traxxas’ exclusive patent-pending Training Mode™, two-stage low voltage detection for LiPo batteries, and robust water-resistant construction, the VXL-3m delivers reliability and confidence for drivers of all skill levels. Its advanced circuit design allows sensorless brushless motors to operate with the smoothness and precision of the best brushed systems without the need for extra sensor wiring or hardware.

Features:

• Traxxas High-Current Connector ensures pure, unrestricted power flow from battery to motor
• Built-in two-stage low voltage detection for safe LiPo battery use
• Compatible with a wide range of batteries: 6–12 cell NiMH/NiCad or 2–3S LiPo
• Patent-pending Training Mode™ reduces output to 50% for beginner drivers
• Advanced sensorless brushless operation provides smooth and precise performance
• EZ-Set® push-button setup operates like the XL-5 ESC family for easy programming
• Multi-color LED provides clear operational feedback
• Two-stage thermal shutdown protection prevents overheating
• Locked Rotor Protection™ prevents damage if motor is stalled

Specifications:

• Input Voltage: 6–12 cells NiMH or 2–3S LiPo
• Case Size (L×W×H): 46.5 × 26.5 × 22 mm
• Weight: 38 g
• Motor Type: Sensorless Brushless
• Motor Limit: None
• On Resistance: 0.0005 Ohms
• PWM Frequency: 12,000 Hz
• Peak Current: 326A
• Continuous Current: 52A
• BEC Voltage: 6.0V DC
• Motor / Battery Wiring: 16-Gauge Maxx® Cable
• Transistor Type: MOSFET
• Low Voltage Detection: 2-Stage indicators, switchable
• Thermal Protection: 2-Stage thermal shutdown
