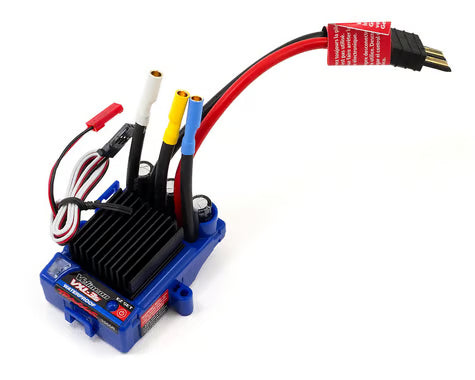

Traxxas - VXL-3S Brushless ESC (Waterproof)

Features

• Patented Traxxas High-Current Connector eliminates a common bottleneck and maintains pure, unrestricted power flow from the battery to the brushless power system.
• Built-in two-stage low voltage detection for Lithium Polymer (LiPo) battery use provides a clear signal to the driver that the battery pack is nearing its minimum voltage threshold.
• Widest range of battery options ranging from 4-cell NiMH or NiCad packs all the way up to 3S LiPo battery packs (11.1 volt)
• The patented Training Mode™ is an exclusive Traxxas feature that reduces the overall power output of the VXL-3s by 50%, making it easier for new or younger drivers to control their model. When they're ready, simply change profiles to unleash full-throttle action.
• Advanced circuit design allows sensorless brushless motors to operate with the smoothness and precision of the best brushed systems. There's no need for additional sensor wiring and hardware complexity.
• The EZ-Set® push-button setup operates and programs just like other Traxxas speed controls such as the XL-5. This eliminates the need to learn a new set of procedures.


Specifications

• Input Voltage:
  • NiCad/NiMH: 4–9 Cells (4.8–10.8 V DC)
  • LiPo: 2–3 Cells (7.4–11.1 V DC)
• Case Size (W × D × H): 39 × 55 × 33 mm
• Weight: 90 g
• Motor Limit (Brushed/Brushless): No motor limit
• On Resistance Forward: 0.00075 Ω
• On Resistance Reverse: 0.00075 Ω
• Peak Current – Forward: 320A
• Peak Current – Reverse: 320A
• Braking Current: 320A
• Continuous Current: 200A
• BEC Voltage: 6.0 V
• BEC Current: 2.5A (with 6-cell NiMH)
