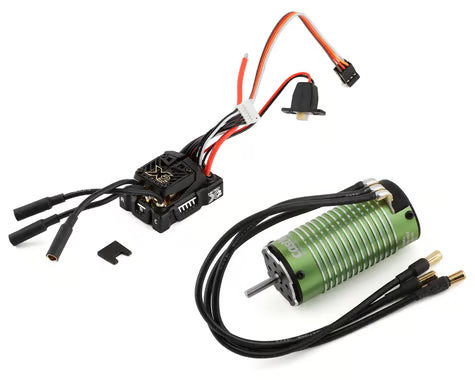

Castle Creations - Mamba Micro X2 Waterproof 1/14th Scale Sensored Brushless Combo (5600Kv)

Castle Creations Mamba Micro X2 Waterproof 1/14th Scale Sensored Brushless Combo now brings sensored brushless power to 1/14th scale vehicles. Constructed with the high quality components Castle Creations products are known for, the 1010 motor features precision sensored technology with the power to match. With an incorporated sensor board this motor offers precise throttle control and buttery smooth starts, plus the incredible power and longer run times that these highly efficient motors produce. When paired with a sensored ESC such as the Mamba Micro X2 this is a great option for rock crawler applications that require high-precision low speed control and torque for climbing. Additionally racers that need precision and predictability along with drag racers can benefit from this technology as well.

Features

• Input Voltage range 2S-4S
• Waterproof design

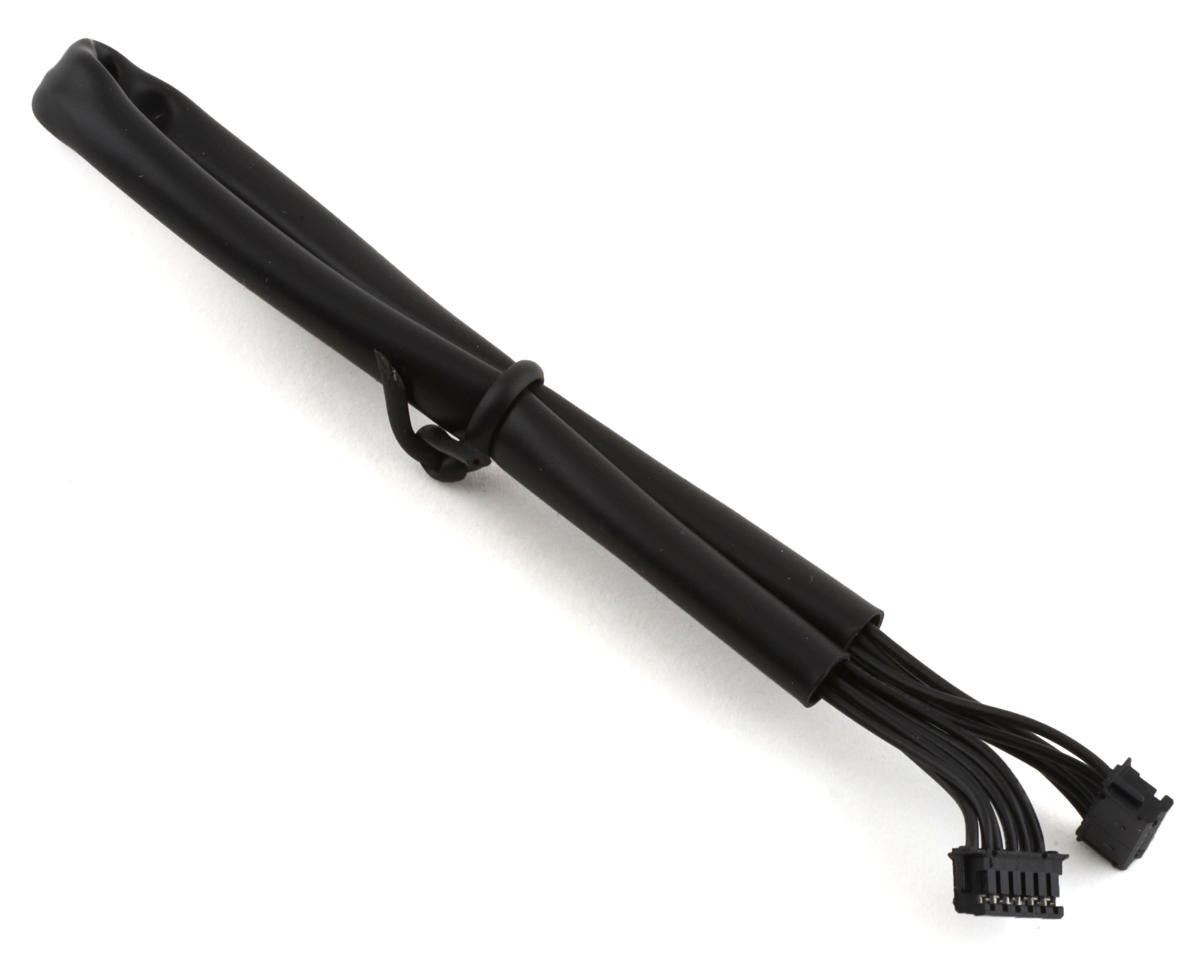

• Sensored Motor capable (with optional sensor harness)
• Convenient transmitter programming for six common adjustable settings
• Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)
• Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)

Specifications

ESC:

• Input Voltage Range: 2S-4S LiPo (16.8V Max)
• BEC: 2A Peak, 5.5v or 7.5v (5.5v default)
• Operating Environment: Waterproof* design allows for use in nearly any environment
• Brake: Proportional
• Reversible: Yes, but may be disabled
• On/Off Switch: Yes, waterproof
• Cooling Fan: Not included
• Size (LxWxH): 41.6mmx29.4mmx21.3mm (1.64" x 1.16" x .84")
• Weight (with wires): 1.66oz (47g)
• Connectors: 3.5mm bullets
• Application Guidelines: 1:18 scale RC hobby vehicles weighing up to 3lbs.

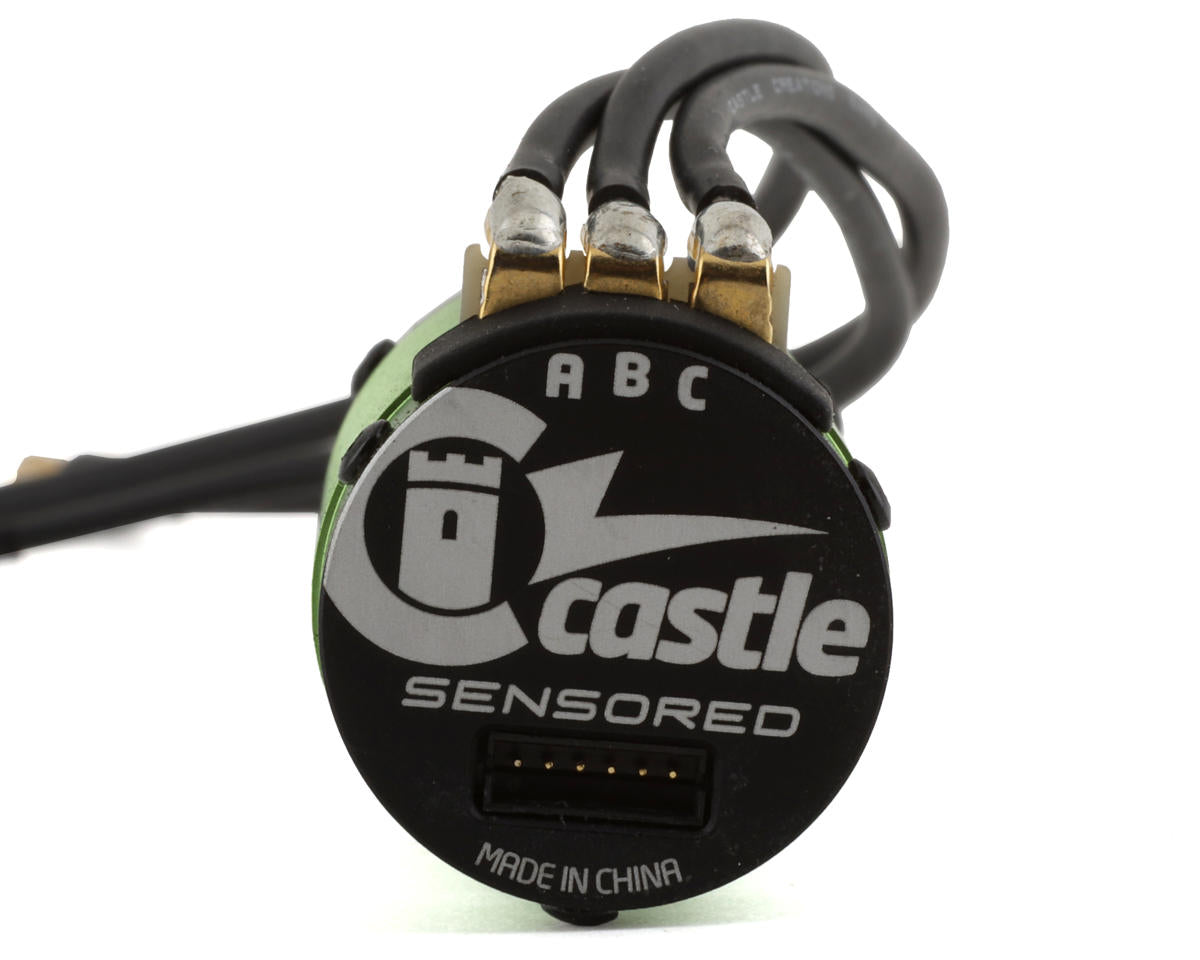

Motor:

• Input Voltage Range: 2S-3S LiPo
• Kv: 5600
• Max. RPM: 80,000
• Length: 59.5mm
• Diameter: 28.25mm
• Weight (w/wires): 5.17oz (146.5g)
• Shaft Length: 15mm
• Shaft Diameter: 1/8" (3.17mm)
• Mounting Hole Specifications: 2.5mm holes @ 14 and 16mm/3mm @ 19mm
• Cooling Fan: No
• Connectors: 4mm male bullets
• Application Guidelines: Ideal for 1/14th and 1/16 vehicles weighing up to 3lbs and up to 4s LiPo
