Specifications

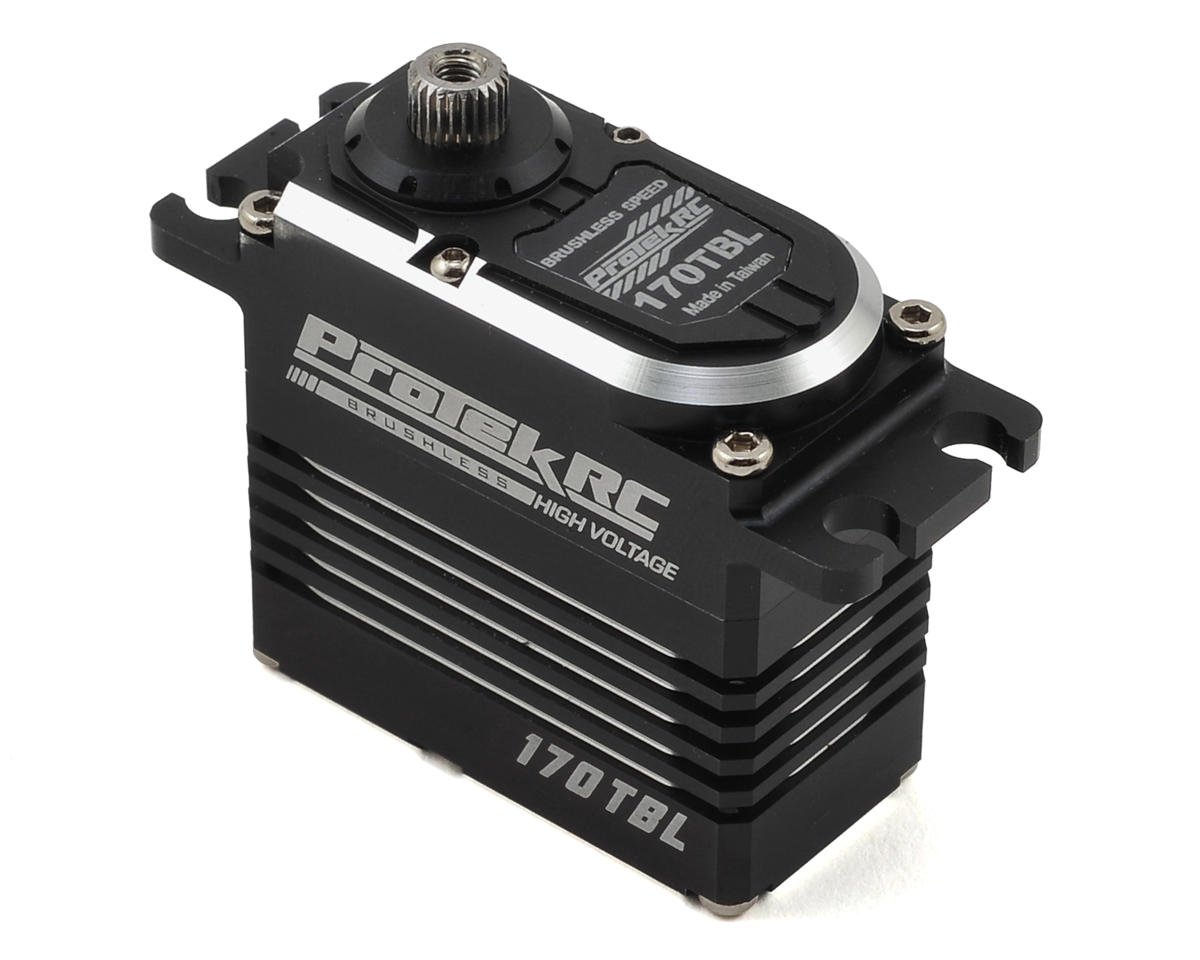

- Servo Model: 170TBL
- Recommended Application: 1/10 to 1/8 Scale Surface
- Operating Voltage: 4.8V - 7.4V
- Operating Temperature: 14° to 140° F (-10 to +60° C)
- Operating Speed @ 6.0V: 0.13/60° sec
- Operating Speed @ 7.4V: 0.11/60° sec
- Dynamic Torque @ 6.0V: 600 oz-in (43.2 kg-cm)
- Dynamic Torque @ 7.4V: 650 oz-in (46.8 kg-cm)
- Motor Type: Brushless Digital
- Output Shaft: 25 Tooth
- Gears: Metal
- Weight: 72g
- Pulse/Frequency: 1520?s / 333hz
- Dimensions: 40 x 20 x 37.8 mm
- Length (Bottom to Mount): 28.4 mm
