ProTek  |  SKU: PTK-130SS

ProTek - Standard Digital "Super Speed" Metal Gear Servo (High Voltage)

Regular price $89.99

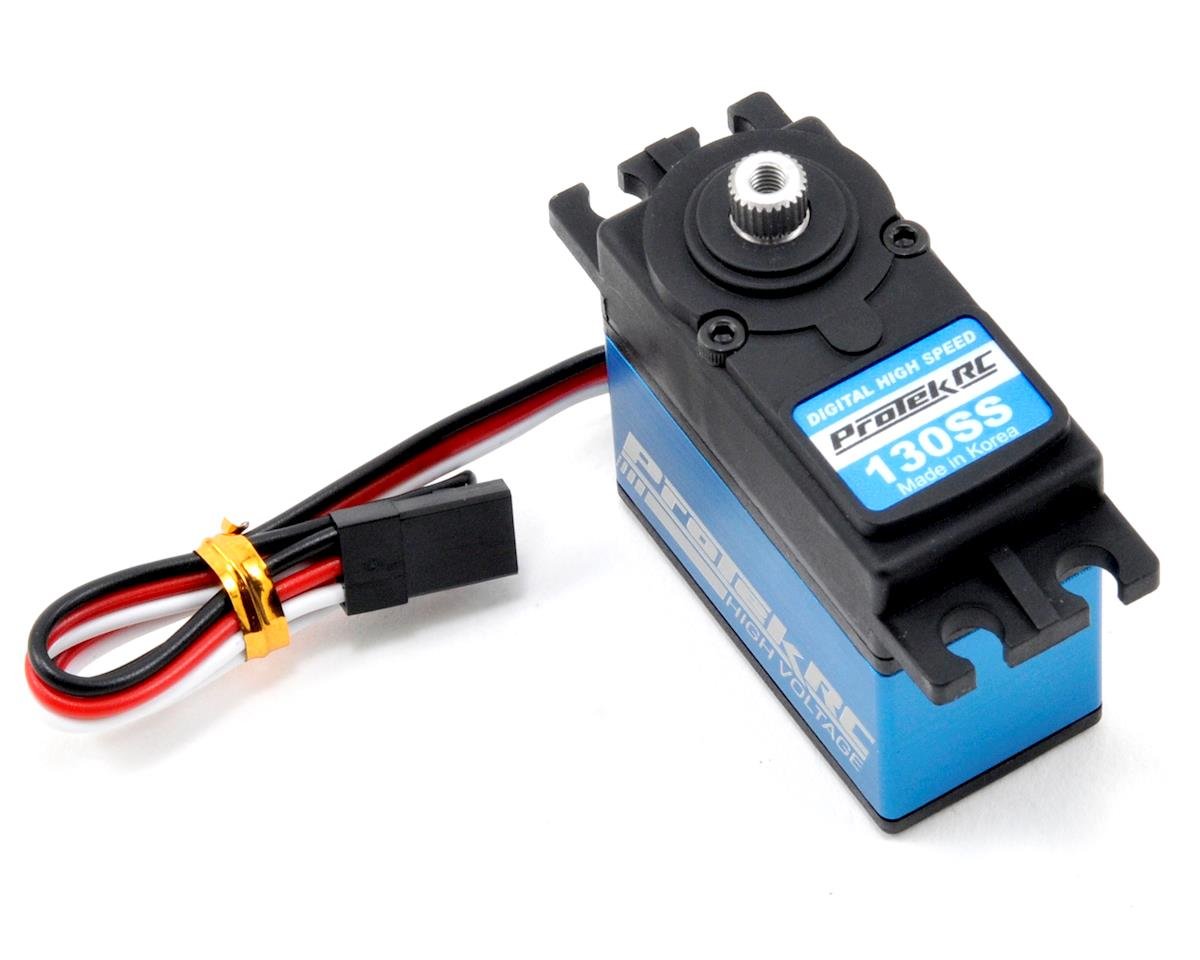

This is the ProTek R/C 130SS Digital Super Speed Metal Gear High Voltage Servo. ProTek R/C Servos have been developed to provide enthusiasts with high quality servo's that will exceed expectations at every level. With features that meet or surpass what our competition can provide, ProTek R/C servos deliver performance and unmatched value, with industry leading customer support.

The ProTek R/C 130SS High Voltage Super Speed servo delivers lighting fast 0.06 transit speed and 211 oz-in of torque at 6.0V, and when you bump the voltage to 7.4 the spec's increase to 0.05 and 260 oz-in! Spec's like these make this servo an excellent choice for any 1/10 to 1/8 scale vehicle application. Other features include a full metal gear train that is supported by dual ball bearings, a 200mm long 22awg connector wire with gold plated connectors, a coreless motor and an aluminum middle case that helps to dissipate heat and helps to increase efficiency.

Features:

  • Ideal for any 1/10 to 1/8 scale vehicle application
  • Aluminum middle case
  • High voltage circuitry
  • 0.06 transit speed, and 211 oz-in of torque @ 6.0V
  • 0.05 transit speed, and 260 oz-in of torque @ 7.4V

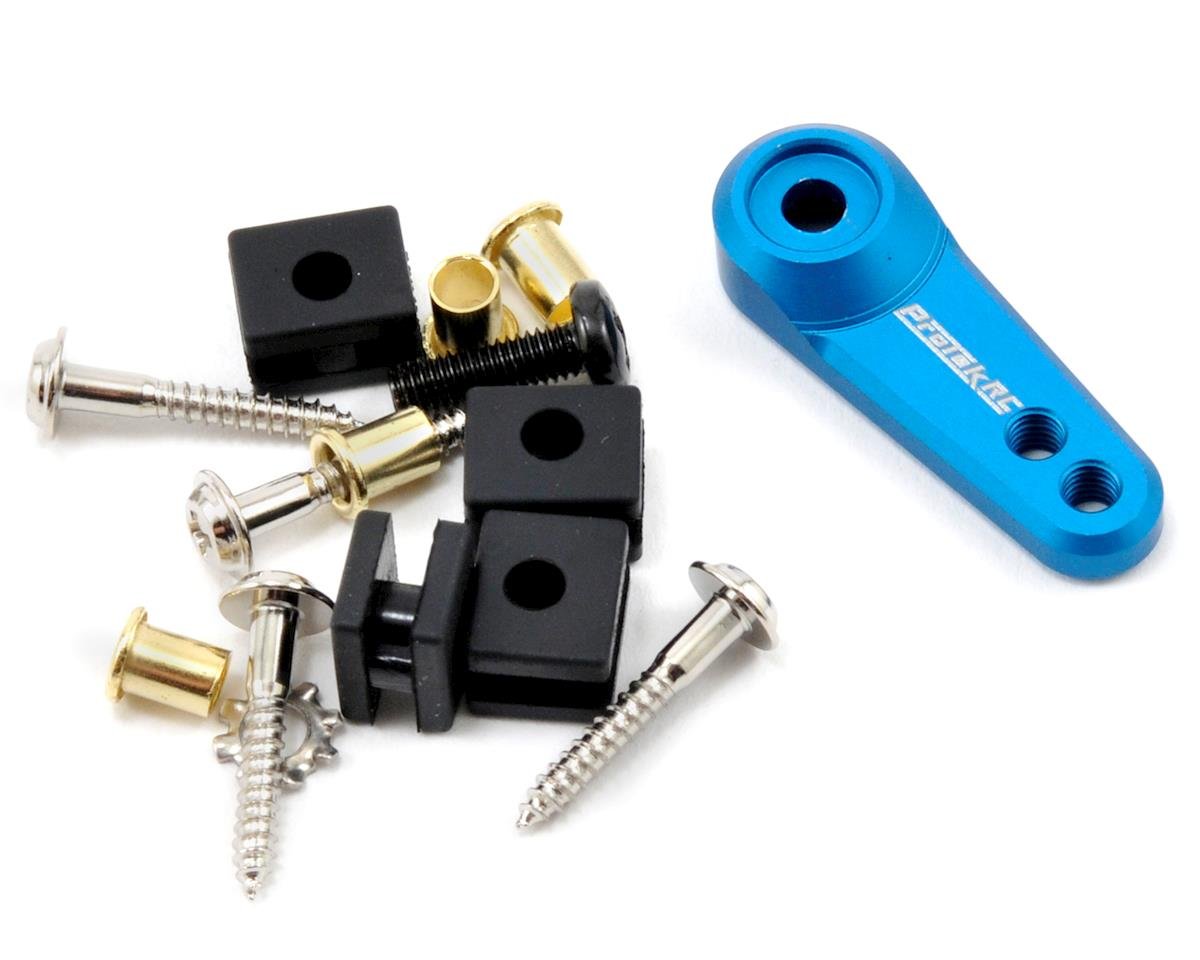

  • Aluminum single arm servo horn

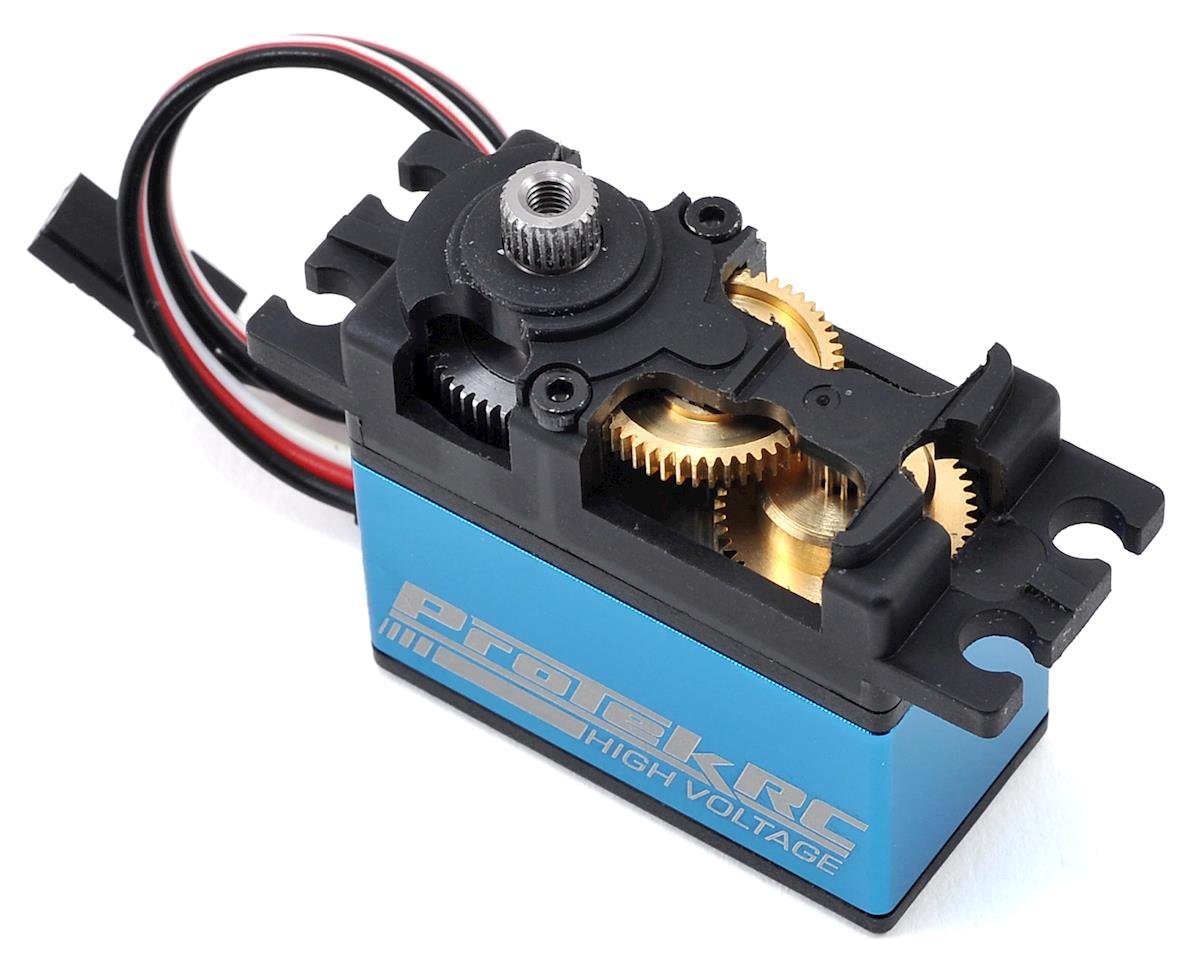

  • Full metal gears and dual ball bearings
  • 200mm long 22awg connector wire w/gold plated connectors
  • Coreless motor

Specifications:

  • Servo Model: 130SS
  • Recommended Application: 1/10 to 1/8 scale surface
  • Operating Voltage: 4.8V – 7.4V
  • Operating Temperature: 14° to 140° F (-10° to +60° C)
  • Operating Speed @ 6.0V: 0.06/60° sec
  • Operating Speed @ 7.4V: 0.05/60° sec
  • Dynamic Torque @ 6.0V: 211 oz-in (15.2 kg-cm)
  • Dynamic Torque @ 7.4V: 260 oz-in (18.7 kg-cm)
  • Motor Type: High Efficiency Coreless Motor
  • Output Shaft: 25 Tooth
  • Gears: Metal
  • Weight: 63.8g
  • Pulse/Frequency: 1520µs / 333Hz
