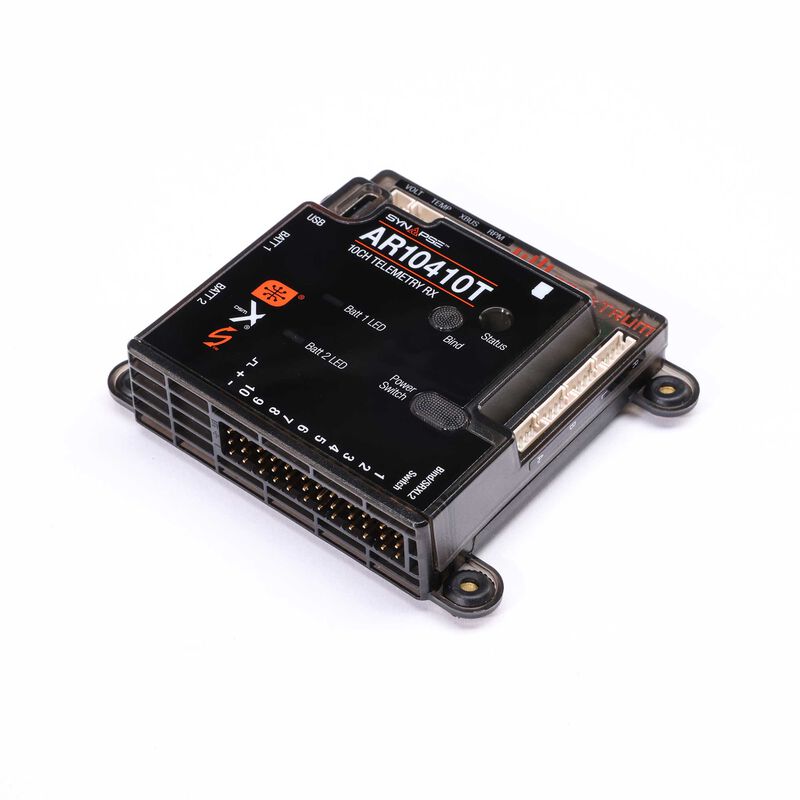

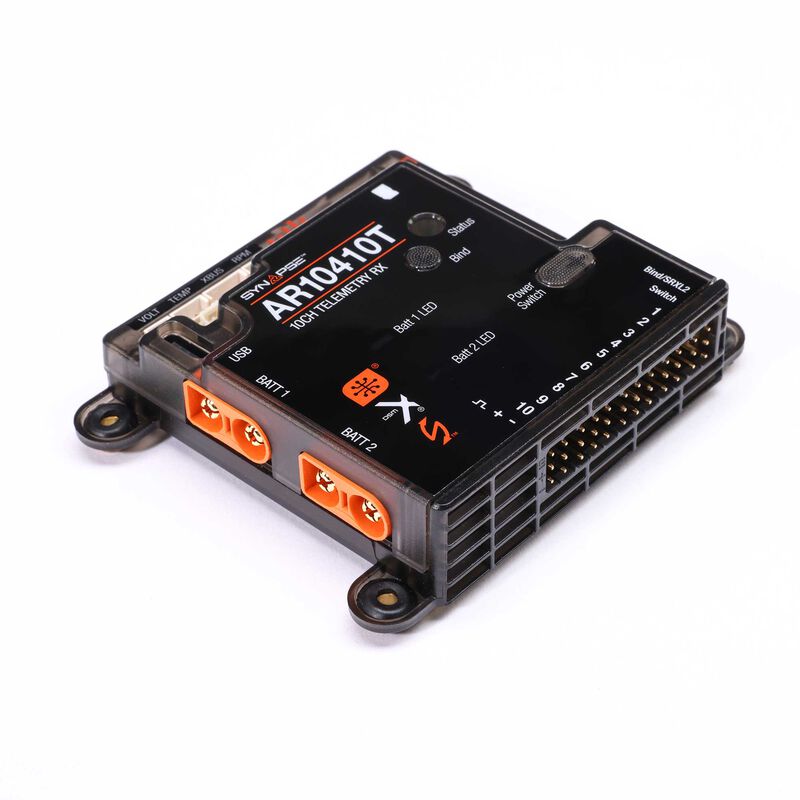

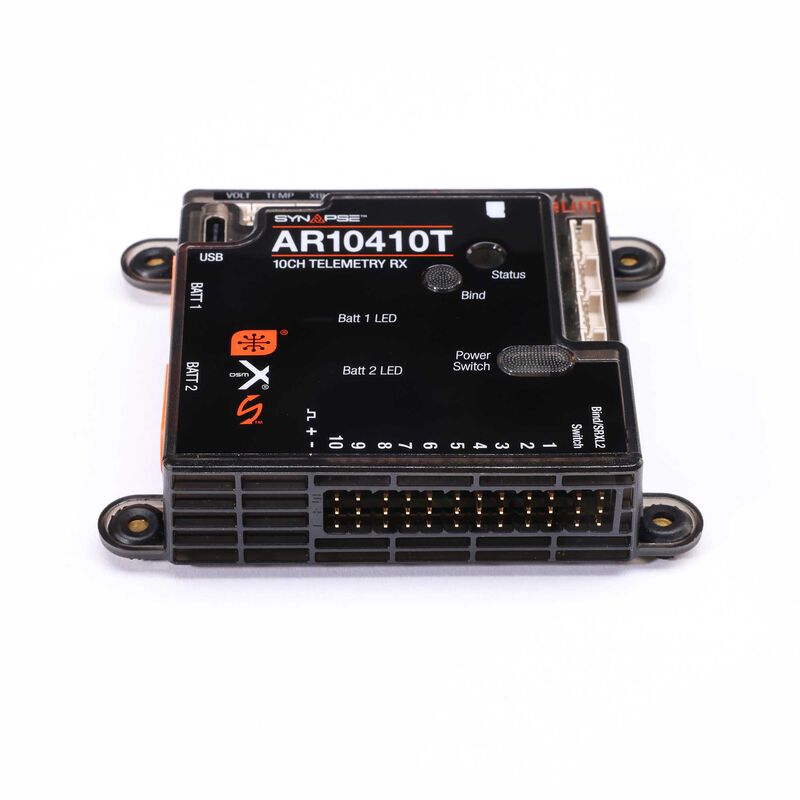

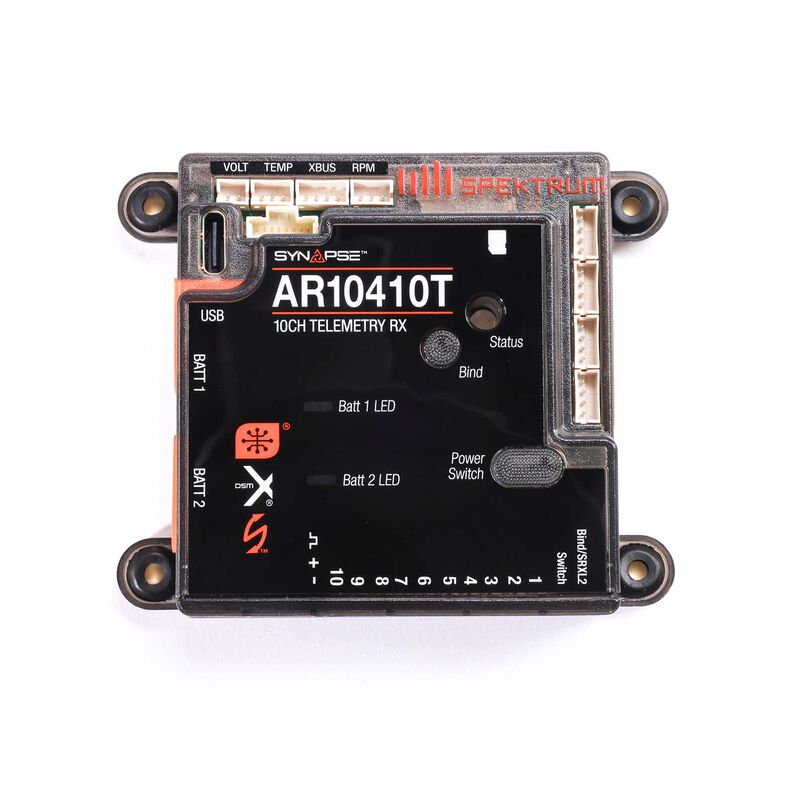

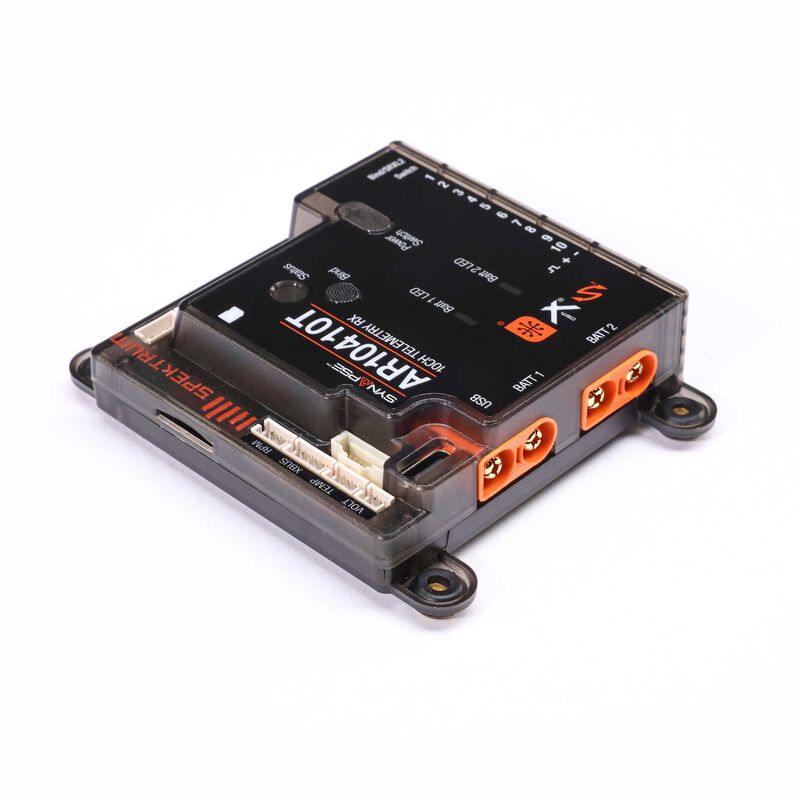

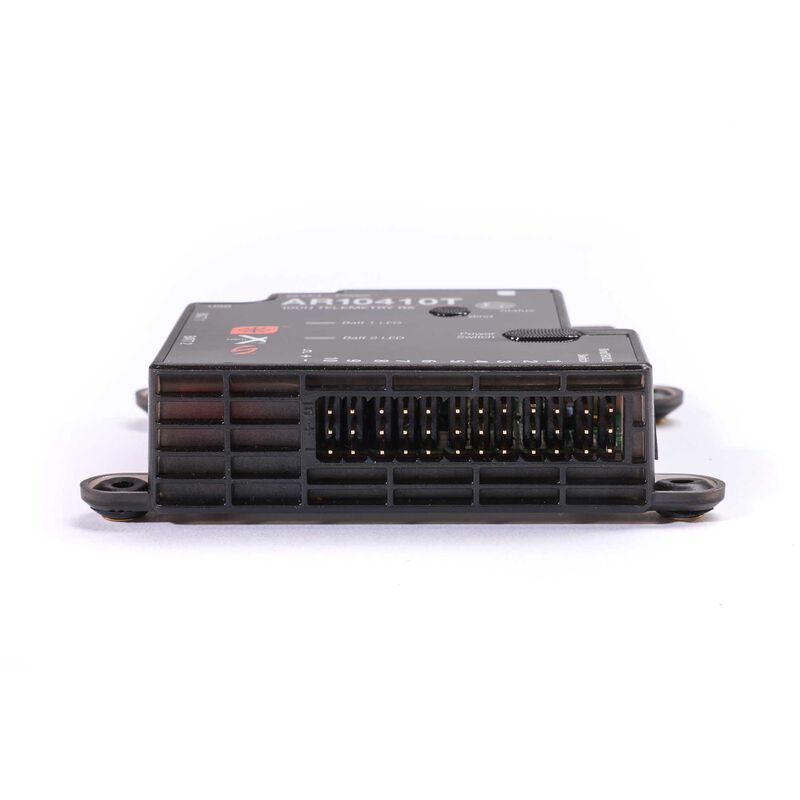

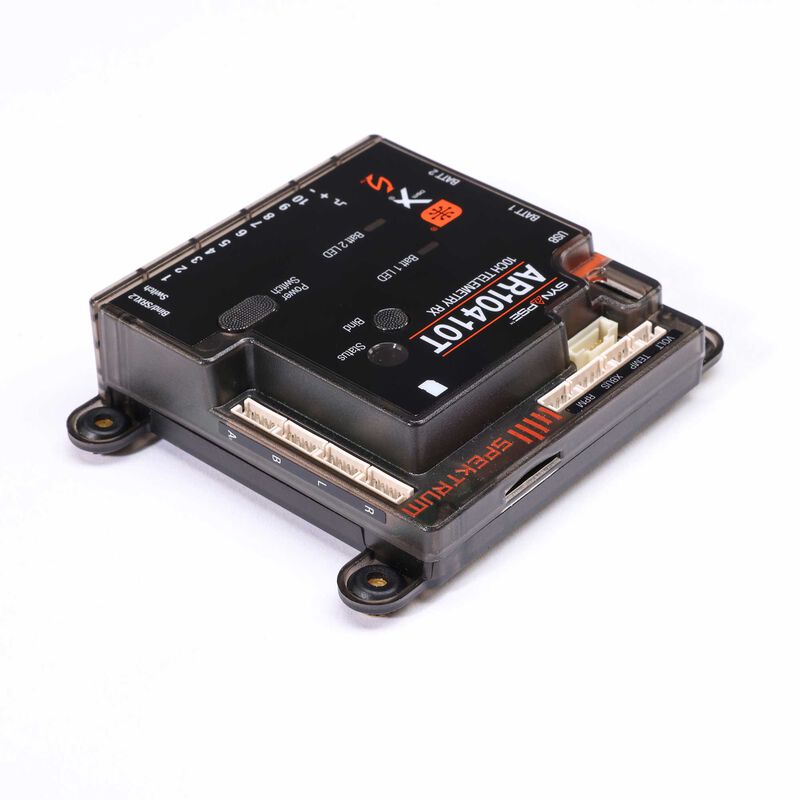

Spektrum AR10410T 10-Channel Power Safe Telemetry Receiver

The AR10410T is a 10-channel PowerSafe telemetry receiver designed for full-range performance. It supports redundant power through dual IC3 connectors and delivers complete telemetry, including RPM, voltage, temperature, altitude, vario, and mAh usage. It works with the Spektrum Synapse AS3X+/SAFE stabilization module for instant attitude correction and smoother flight control. Flight data can be logged to a micro-SD card, and the receiver includes a push-button soft switch plus remote sleep/wake and power control from compatible Spektrum transmitters. Setup and updates are simple through the USB-C port.

Features

• Compatible with AS3X+/SAFE stabilization

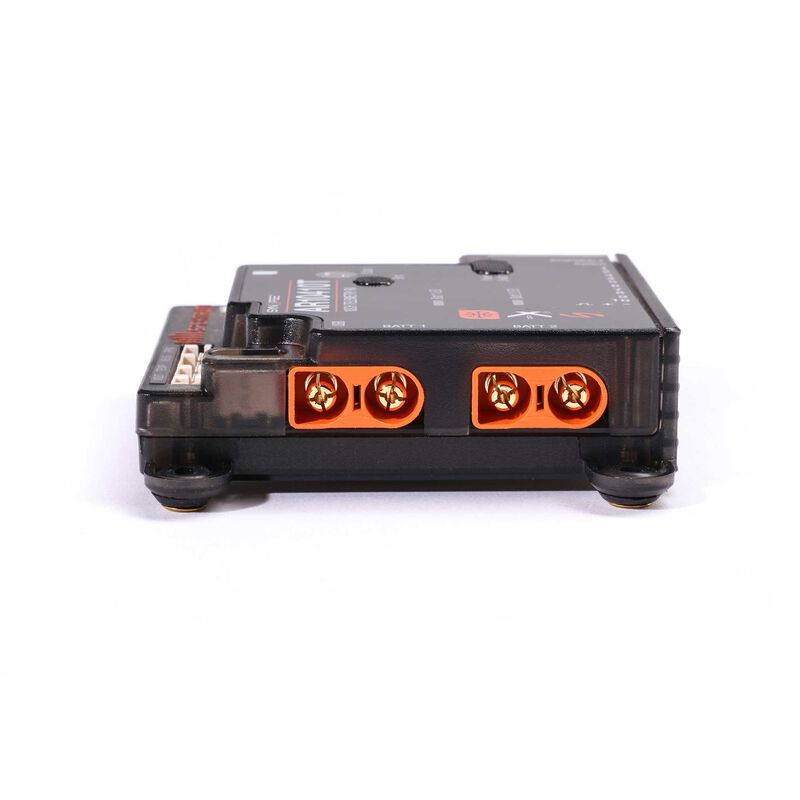

• PowerSafe redundant system with dual IC3 inputs

• Forward programming for easy setup adjustments

• Remote sleep/wake and power control from transmitter

• Regenerative servo support

• USB-C for registration and firmware updates

• 12V servo compatibility via Forward Programming

• Automatic battery capacity monitoring

• Integrated Black Box telemetry logging (micro-SD)

• Smart ESC one-wire telemetry ready

• Built-in barometer for altitude and vario

• Soft Switch keeps power uninterrupted

• Clean mounting with rubber grommets

• 11ms high-speed frame rate capable

• Multiple binding options

• Ports for RPM, voltage, temperature, and X-Bus sensors

• Improved gyro filtering and heading hold

• Supports canard and thrust vectoring systems

Specifications

• Application: Air

• Band: 2.4GHz

• Bind Method: Bind Button, Bind Plug

• Channels: 10

• Data Port: Yes

• Failsafe: Yes

• Flight Log Compatible: Yes

• Input Voltage: 3.5–12.6V

• Modulation: DSMX/DSM2

• Product Height: 0.71" (18 mm)

• Product Length: 2.6" (66 mm)

• Product Weight: 1.9 oz (54 g)

• Product Width: 2.4" (61 mm)

• Programmable: Yes

• Range: Full

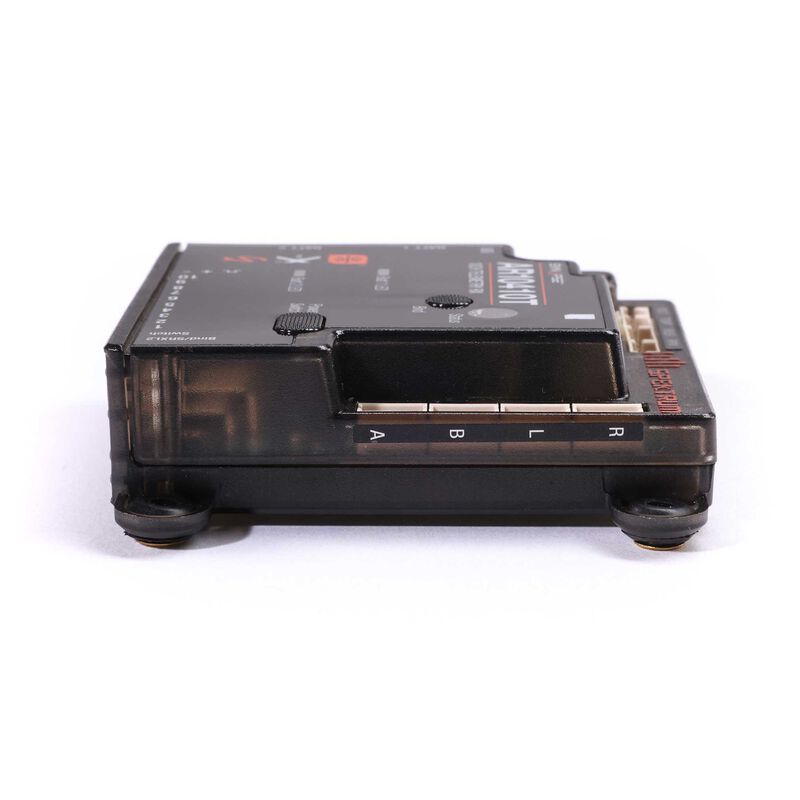

• Remote Receiver Ports: 4

• Resolution: 2048

• Serial Out: SRXL2

• Technology: AS3X+

• Telemetry: Yes

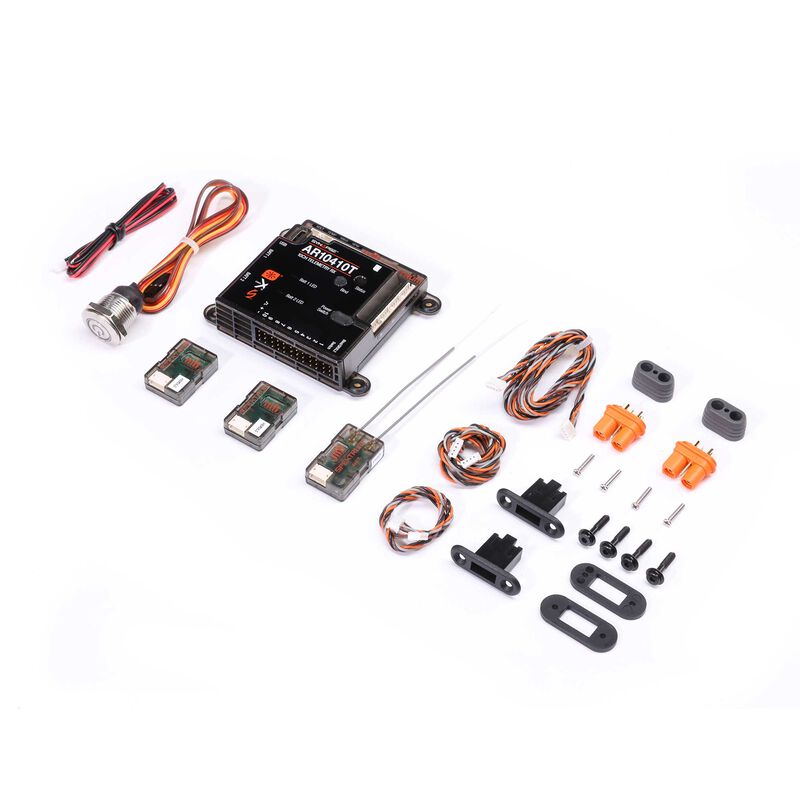

In The Box

• AR10410T 10-Channel PowerSafe Receiver (1)

• SPM4651T SRXL2 Remote Serial Telemetry Receiver (1)

• SPM9747 SRXL2 DSMX Remote Receivers (2)

• 9" SRXL2 Remote Receiver Extension (1)

• 12" SRXL2 Remote Receiver Extension (1)

• 24" SRXL2 Remote Receiver Extension (1)

• Battery IC3 Connectors (2)

• Charge Receptacles (2)

• Aircraft Telemetry Volt Sensor (1)

• Soft Switch (1)

• Instruction Manual (1)
