HITEC  |  SKU: D71MH

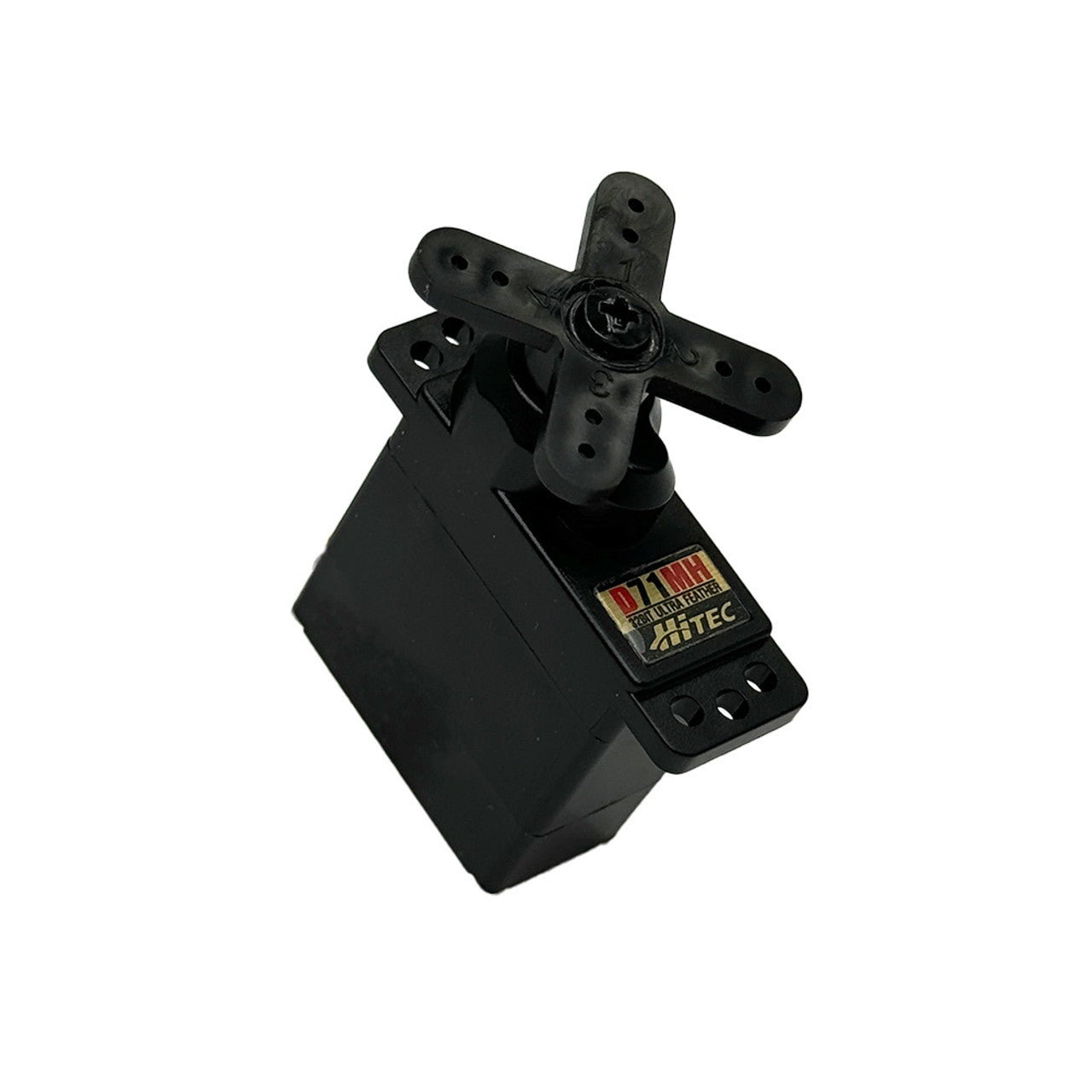

HITEC - 12.5g Long-Life Metal Gear Digital Micro Servo

$48.99

The micro sized, metal geared D71MH is part of our D-Series Servo Line with a longer life Carbon Brushed Motor. The D71MH is a more powerful option to the HS-5065MG. The fully programmable servo operates on a wide 3.5 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators.

Features

  • Programmable PWM Digital Amplifier
  • 32-Bit MCU with 12-Bit ADC Circuitry
  • Wide Operating Voltage (3.5. ~ 8.4 Volts DC)
  • Ball Bearing Supported Output Shaft
  • 25 Tooth Output Spline
  • Cored Carbon Brush Motor
  • Nylon Reinforced Plastic Case
  • Dust Resistant and Splash Proof Case

Specifications:

  • Continuous Rotation: n / a
  • Connector Wire Length: 160mm (6.299 in.)
  • Connector Wire Gauge: 28AWG

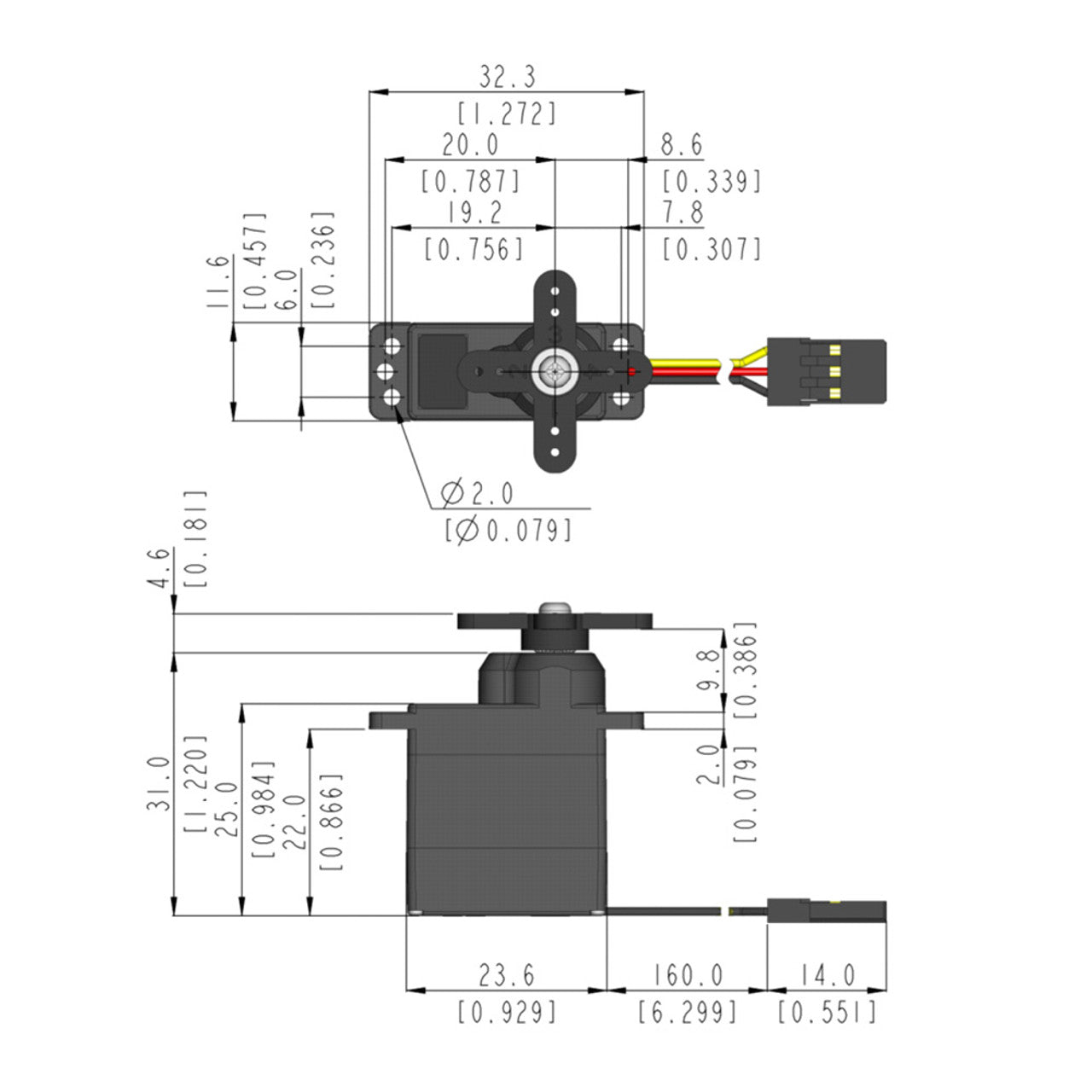

  • Dimensions: 23.6 x 11.6 x 31.0mm (0.929 x 0.457 x 1.220 in.)
  • Weight: 12.5g (0.441 oz)
  • Motor Type: Cored Metal Brush
  • Bearing Type: 1 Ball Bearing
  • Case Material: Engineering Plastic
  • Gear Material: 1 Resin & 4 Metal Gears
  • Horn Gear Spline: M25T (Ø5.0)
