HITEC  |  SKU: DB951WP

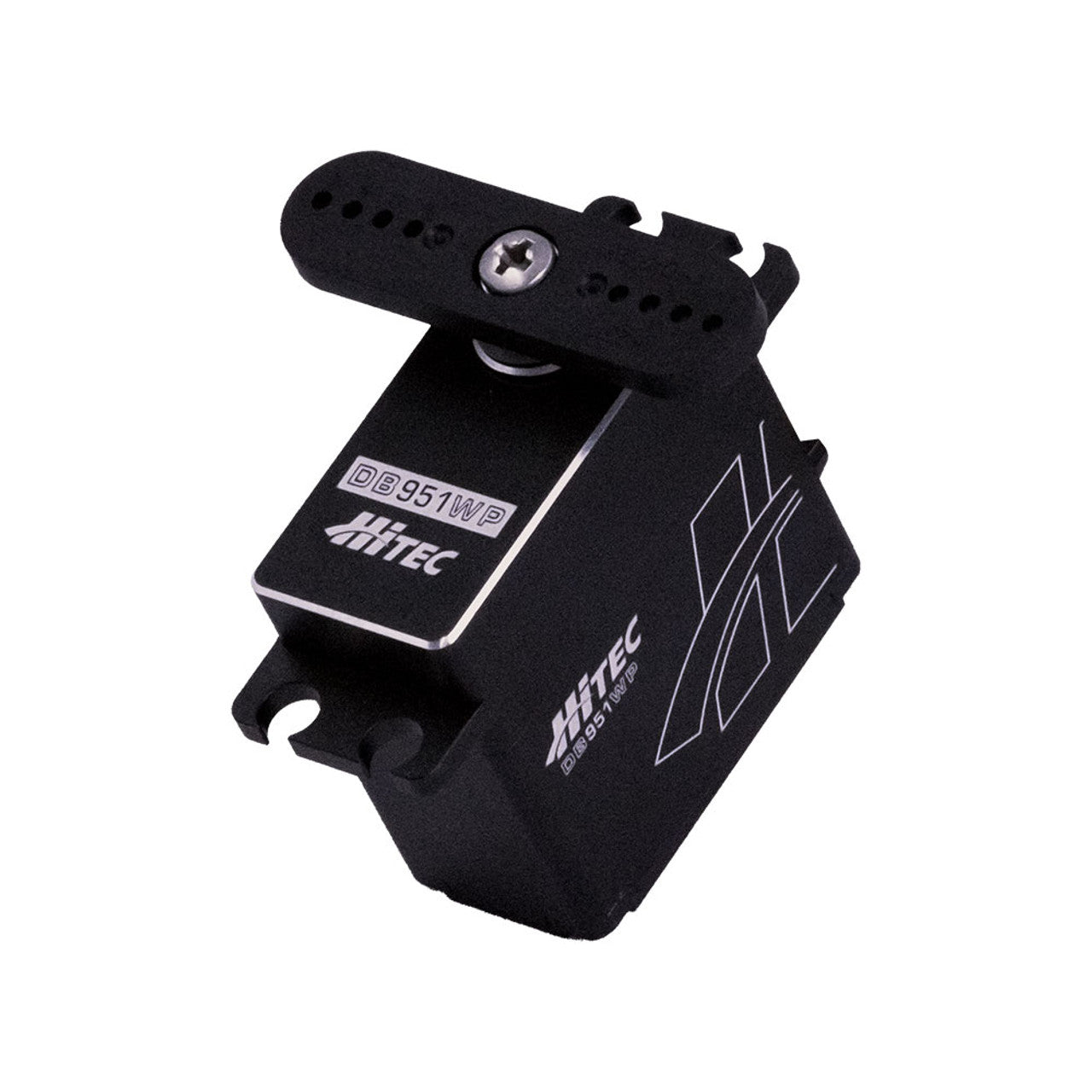

HITEC - High Speed Aluminum Case 25T Digital Brushless Servo

Regular price $199.99


Superior performance. Extraordinary precision. The DB951WP delivers 528 oz-in of torque with blistering speeds of 0.10 sec/60° @ 7.4 volts, housed in a fully waterproof, CNC-machined aluminum case with hardened steel gears and a brushless motor. Built to dominate off-road RC, crawlers, giant-scale aircraft, and 600+ helis, this servo is ready for anything you throw at it. No compromises. No limits. Just pure performance.

Features

  • Voltage Range is 4.0V - 8.4V
  • Speed: 0.12 sec/60° @ 6V & 0.10 sec/60°@ 7.4V
  • Torque: 563 in./oz. @ 6V & 7.4V
  • Optimized for up to 2-Cell LiPo Use
  • Ultra-Performance Brushless Motor
  • 32-Bit MCU Technology / 4096 Resolution
  • High Resolution/Low Deadband Circuitry
  • User Programmable Thermal Cutoff
  • Full Programmability
  • IP67 Waterproof Rating
  • Smart Sense Technology for Servo Analytics
  • H25T Industry Standard Output Spline

Specifications

  • Operating Voltage Range (Volts DC): 4.0V ~ 8.4V
  • Speed (Second @ 60°): 0.10 @ 7.4V
  • Maximum Torque Range (oz/in): 527.72 @ 7.4V
  • Maximum Torque Range (kg/cm): 38.0 @ 7.4V
  • Current Draw at Idle: 35mA @ 7.4V
  • No Load Operating Current Draw: 350mA @ 7.4V
  • Stall Current Draw: 6,500mA @ 7.4V
  • Dead Band Width: 1us
