HITEC  |  SKU: HS-7954SH

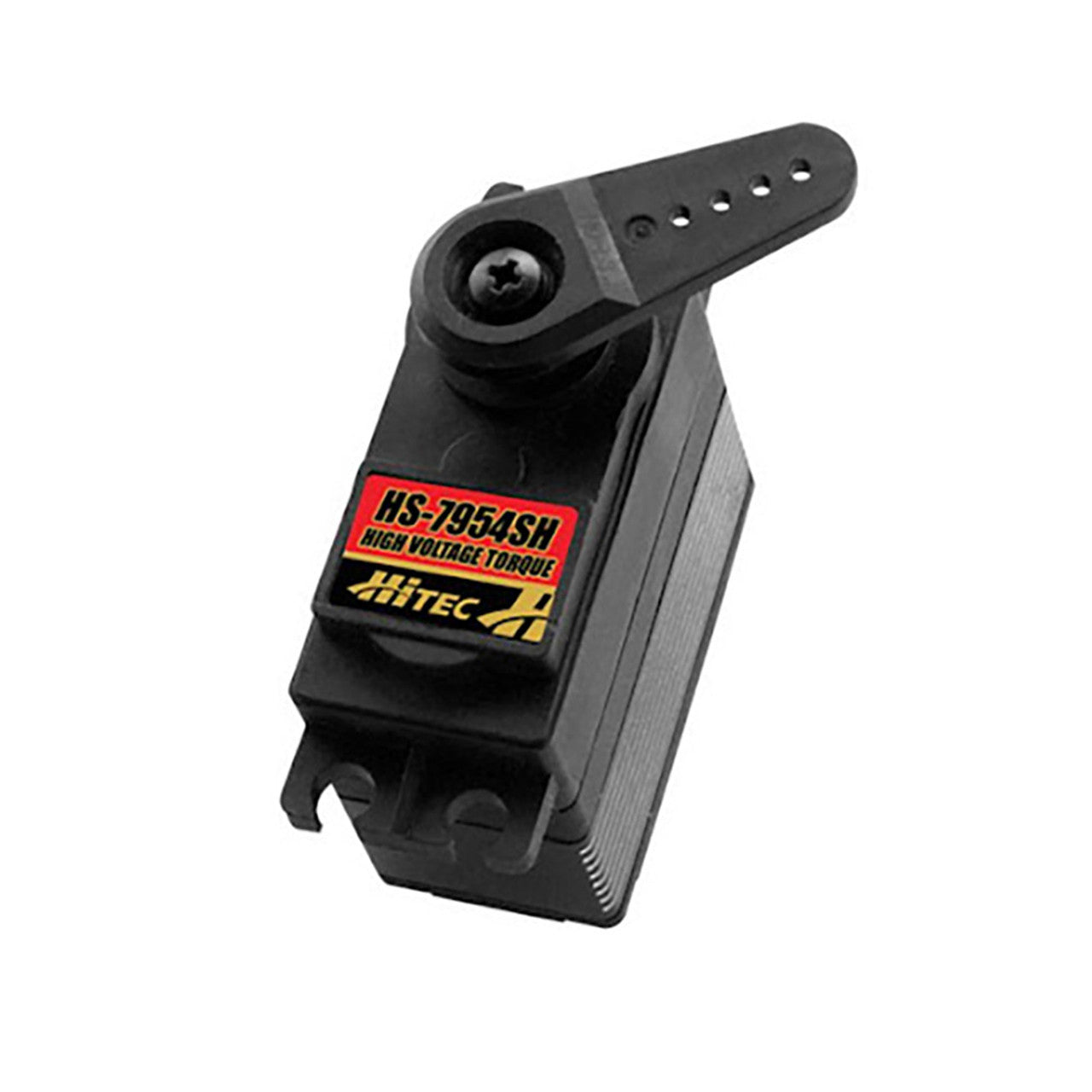

HITEC - High Torque Steel Gear 24T Digital Coreless Servo

$125.99

The HS-7954SG has been designed for the most demanding hobby applications including the largest aircraft and monster trucks. Featuring a titanic 402 oz./in. of torque at 7.4 volts, all this power is harnessed by incorporating durable steel gears for impressive wear resistance and two strong hardened steel gear pins and axial brass bushing in the servo case.

Features

  • G2 Digital Circuit
  • Coreless Motor
  • Dual Ball Bearing Supported Output Shaft
  • Steel Gear Train (MP first gear)
Specifications:
  • Operating Voltage Range (Volts DC): 4.8V ~ 6.0V ~ 7.4V
  • Speed (Seconds @ 60°): 0.19 ~ 0.15 ~ 0.12
  • Maximum Torque Range oz./in.: 250 ~ 333 ~ 402
  • Maximum Torque Range kg./cm.: 18.0 ~ 24.0 ~ 29.0
  • Current Draw at Idle: 9 mA
  • No Load Operating Current Draw: 300 mA
  • Stall Current Draw: 4,200 mA
  • Dead Band Width: 1 µs
