Hobbywing  |  SKU: HWA38020456

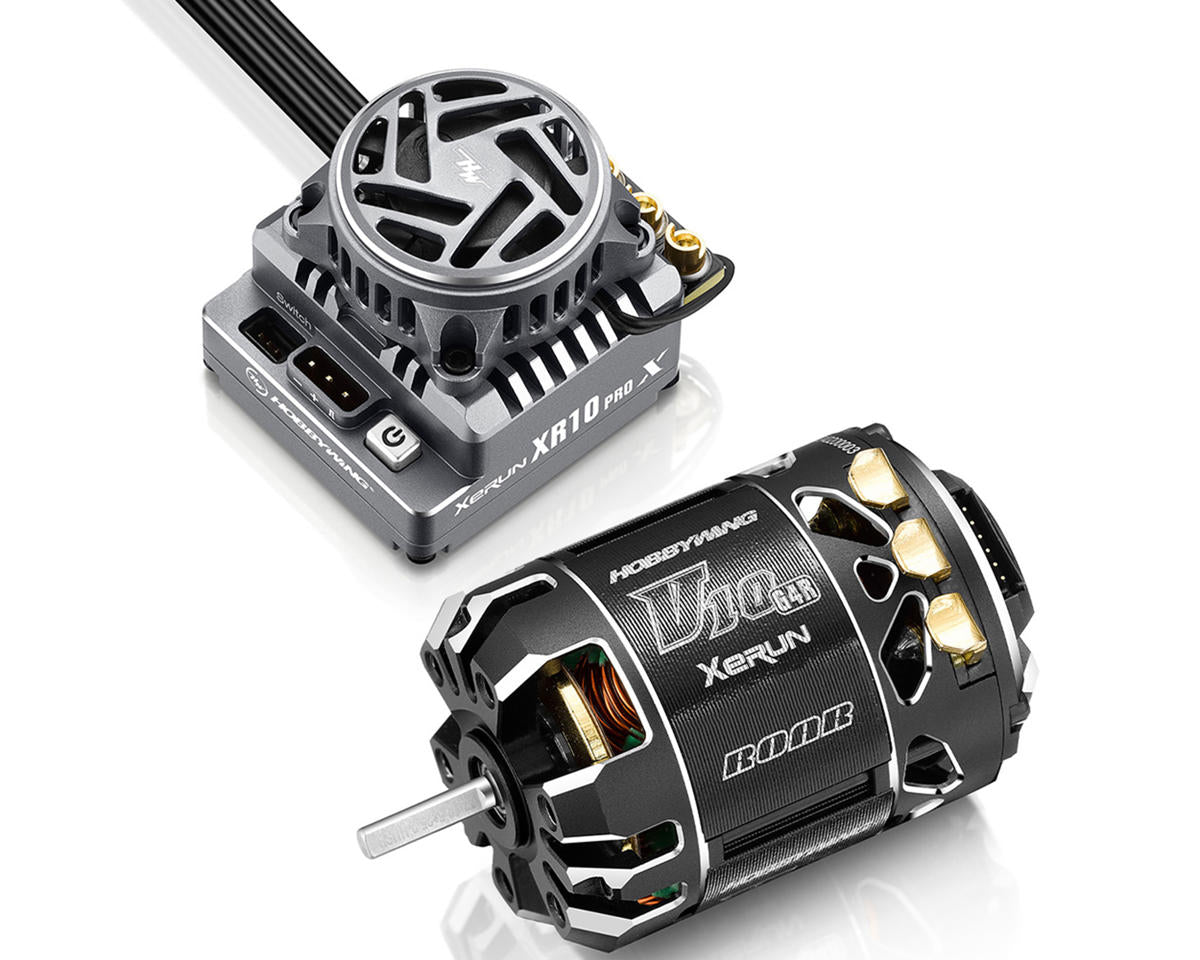

Hobbywing - XR10 Pro G3X Stock Spec Sensored Brushless ESC/V10 G4R Motor Combo (21.5T)

Regular price $339.99


The Hobbywing XR10 Pro G3X Stock Spec Sensored Brushless ESC and V10 G4R Motor Combo is engineered for 1/10th Stock class racing, providing racers with precise control and optimized performance. Designed with a unique Hobbywing trade secret, the ESC handles aggressive current while minimizing heat generation, ensuring maximum efficiency and power delivery. The ESC has advanced customization features, built-in protections, and data recording*, offering racers the reliability and competitive edge needed to perform at their best. Paired with the powerful V10 G4R Motor, this ESC and motor combo is the perfect choice for unmatched control and efficiency.

Features:

  • 160A continuous current
  • Hobbywing's trade secret technology for reduced heat generation
  • Three customizable racing profiles
  • Variable frequency PWM and brake control
  • Built-in data recording module
  • Internal and external switch options
  • Softening function for smoother power delivery
  • Motor equipped with exposed stator core for maximum heat dissipation
  • Large rear opening on the motor to enhance cooling efficiency
  • V10 G4R dual sensor interface for flexible wiring and layout

Specifications:

ESC:

  • Suggested Application: 1/10 Off-Road Stock, F1, Drifting, Rally
  • Motor Type: Brushless – Sensored/Sensorless
  • Input Voltage: 2S LiPo (Only)
  • Continuous Current: 160A
  • Peak Current: 1200A
  • Dimensions (LxWxH): 1.38 × 1.32 × 1.19 in (35 × 33.6 × 30.3 mm)
  • Weight: 3.58 oz (101.5 g)
  • Motor Limits: 540-Size 3650 Motor
  • BEC Voltage: 5–7.4V
  • BEC Continuous Current: 5A
Motor:
  • Suggested Application: 1/10 Stock Racing
  • Size:
  • Type: Brushless – Sensored
  • Input Voltage: 1–2S LiPo
  • No Load Current:
  • Poles: 2
  • Connector: Solder
  • Length: 2.02 in (51.3 mm)
  • Diameter: 1.41 in (35.8 mm)
  • Shaft Length: 0.55 in (13.9 mm)
  • Shaft Diameter: 3.18 mm (0.13 in)
