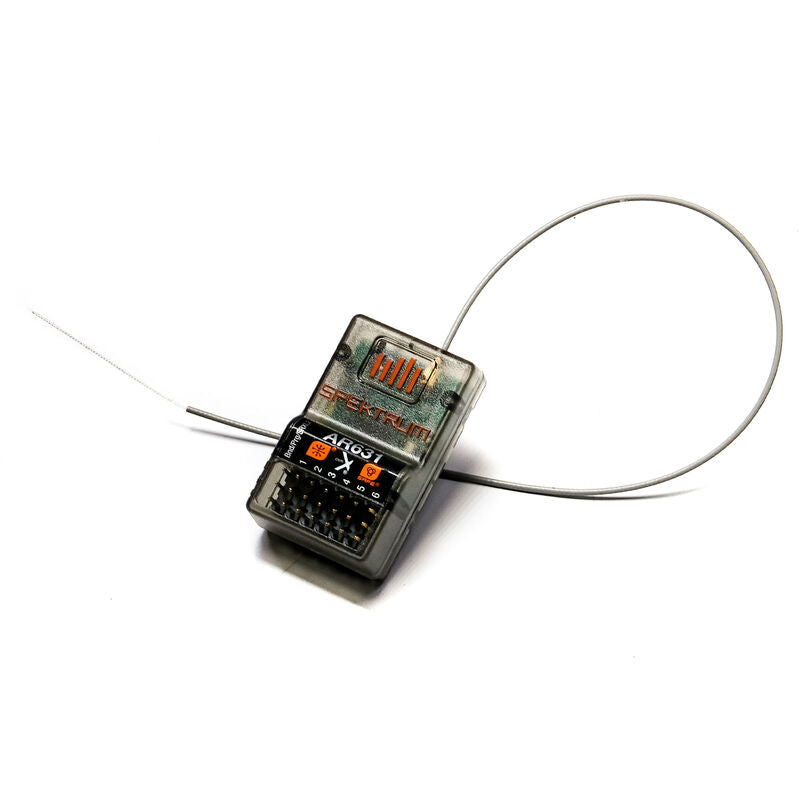

Spektrum AR631 DSMX 6-Channel AS3X & SAFE Receiver

The Spektrum AR631 is a compact 6-channel DSMX/DSM2 receiver with built-in AS3X and SAFE stabilization. It offers full-range performance, Smart ESC telemetry support, a long 230mm antenna for better reception, and simple binding via a push button. Suitable for park flyers and sport models.

Features

• Built-in AS3X & SAFE stabilization
• 230mm long antenna for flexible installation
• Smart ESC one-wire telemetry support
• Fly-by telemetry for battery and flight data
• Top-pin lightweight hard-case design
• Bind button no plug needed
• DSMX with DSM2 backward compatibility

Specifications

• Antenna Length: 9" (229 mm)
• Application: Airplane, Sailplane
• Band: 2.4GHz
• Bind Method: Bind Button
• Channels: 6
• Input Voltage: 3.5–9V
• Modulation: DSMX
• Length: 1.53" (39 mm)
• Width: 0.94" (24 mm)
• Height: 0.55" (14 mm)
• Weight: 0.28 oz (8 g)
• Range: Full
• Resolution: 2048
• Serial Out: SRXL2
• Telemetry: Yes (Fly-By)
• Technology: AS3X / SAFE

In The Box

• AR631 AS3X Telemetry Receiver (1)
• Product Manual (1)

Needed to Complete

• Spektrum telemetry-capable DSMX transmitter (1)
