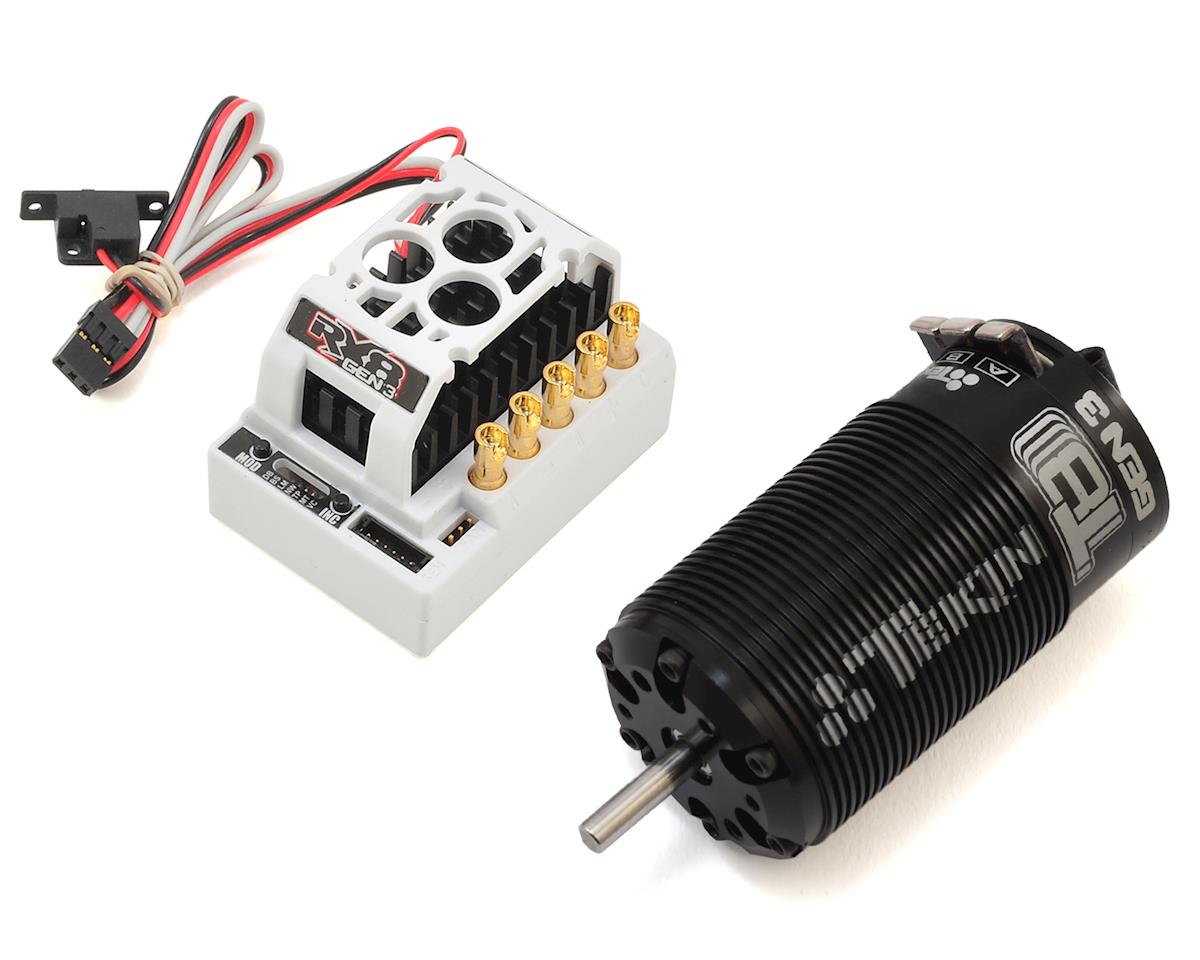

Tekin - RX8 GEN3/Redline T8 GEN3 1/8 Buggy Brushless ESC/Motor Combo (1900kV)

• Updated HD Gold-plated Solder Posts for Easy Soldering
• Updated Adjustable Torque Control
• Updated Adjustable Throttle and Brake Frequencies
• Updated HD High Voltage Programmable BEC
• Ultra-smooth and Precise Throttle and Braking Control
• Compatible with Brushless and Brushed Motors
• Easily Access Programming, Anywhere, Anytime
• Datalogging Capability
• EZ Access HotWire Programming Port
• HotWire Interface for Advanced Programming and Updating
• D2: Dual Drive Mode Technology
• On-Board Temperature Indicator
• HDAC: High Density Copper PCB's


ESC:

• CNC Machined 6061 T6 Billet Aluminum Ribbed Heatsink Can
• Matte Anodized for Maximum Corrosion Resistance
• Sensored and Sensorless Operation
• Low Resistance HD Solder Tabs
• Rebuildable Design
• Solderless Sensor PCB Replacement
• 4-Pole Neodymium Sintered Magnet

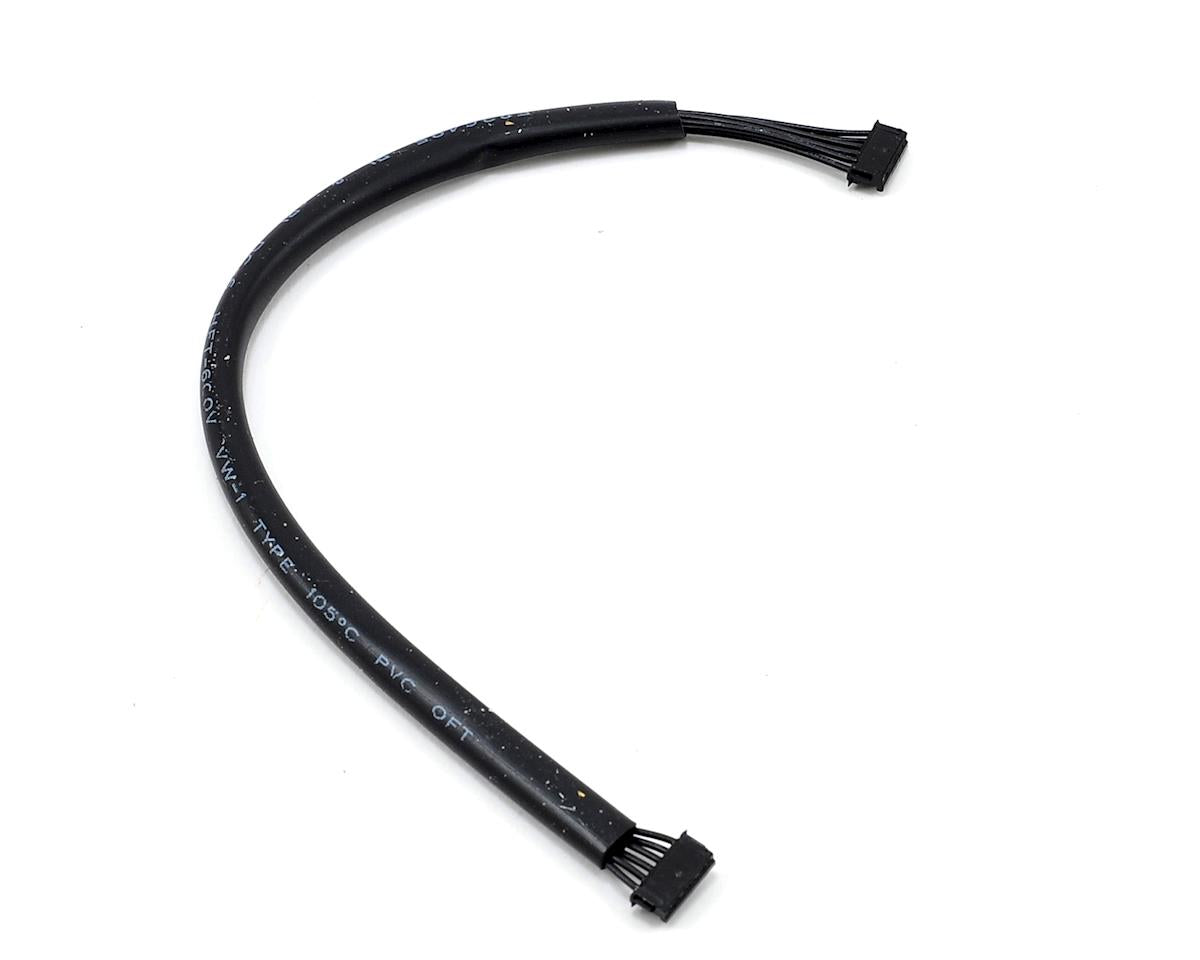

• Dual-Plug Sensor Wire Harness
• ABEC5 Precision High Speed Oversized Bearings

Specifications

Motor:

• KV: 1900 (rated for 4S)
• Weight: 311g / 11oz
• Shaft Dimensions: 5mm (0.125") x 19mm
• Motor Diameter: 40mm / 1.57" (42mm / 1.65" including fin)
• Motor Length: 69mm / 2.71"
• Bearing Dimensions: Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm
• Rotor Size: 18.5mm
• Rebuildable: Yes

ESC:

• Controls: Forward / Brake / Reverse
• Input Voltage: 2S–6S LiPo / 4–16S NiMH-NiCD
• BEC: 6.0V / 7.4V @ 8A
• Motor Limit Brushless Mode:
  • 2S – No Limit
  • 3S – 4000kV
  • 4S – 3500kV
  • 5S – 2200kV
  • 6S – 2200kV
• Motor Limit Brushed Mode: No Limit
• Max Current: 300A per phase
• Burst Current: 1000A per phase
• Timing Profiles: 7 choices (onboard)
• Brushed Modes: FWD Only / FWD–REV / FWD–REV Delay
• Brushless Modes: FWD Only / FWD–REV / FWD–REV Delay
• Dimensions: 1.5 x 2.2 x 1.4" (38 x 55.8 x 35.5 mm)
