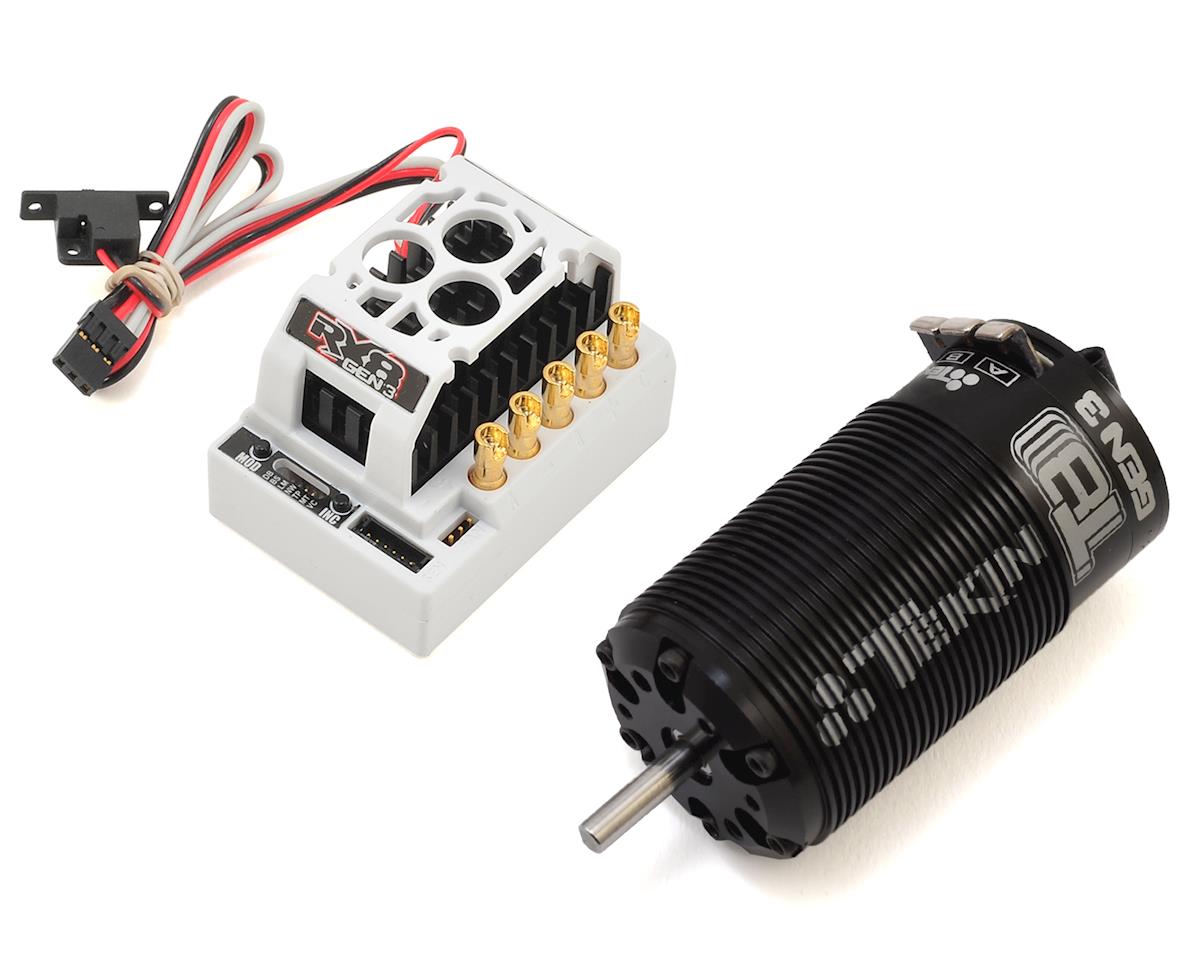

Tekin - RX8 GEN3/Redline T8 GEN3 1/8 Buggy Brushless ESC/Motor Combo (2650kV)

• Updated HD Gold-plated Solder Posts for Easy Soldering
• Updated Adjustable Torque Control
• Updated Adjustable Throttle and Brake Frequencies
• Updated HD High Voltage Programmable BEC
• Ultra-smooth and Precise Throttle and Braking Control
• Compatible with Brushless and Brushed Motors
• asily Access Programming, Anywhere, Anytime
• Datalogging Capability
• EZ Access HotWire Programming Port
• HotWire Interface for Advanced Programming and Updating
• D2: Dual Drive Mode Technology
• On-Board Temperature Indicator
• HDAC: High Density Copper PCB's


Motor:

• CNC Machined 6061 T6 Billet Aluminum Ribbed Heatsink Can
• Matte Anodized for Maximum Corrosion Resistance
• Sensored and Sensorless Operation
• Low Resistance HD Solder Tabs
• Rebuildable Design
• Solderless Sensor PCB Replacement
• 4-Pole Neodymium Sintered Magnet

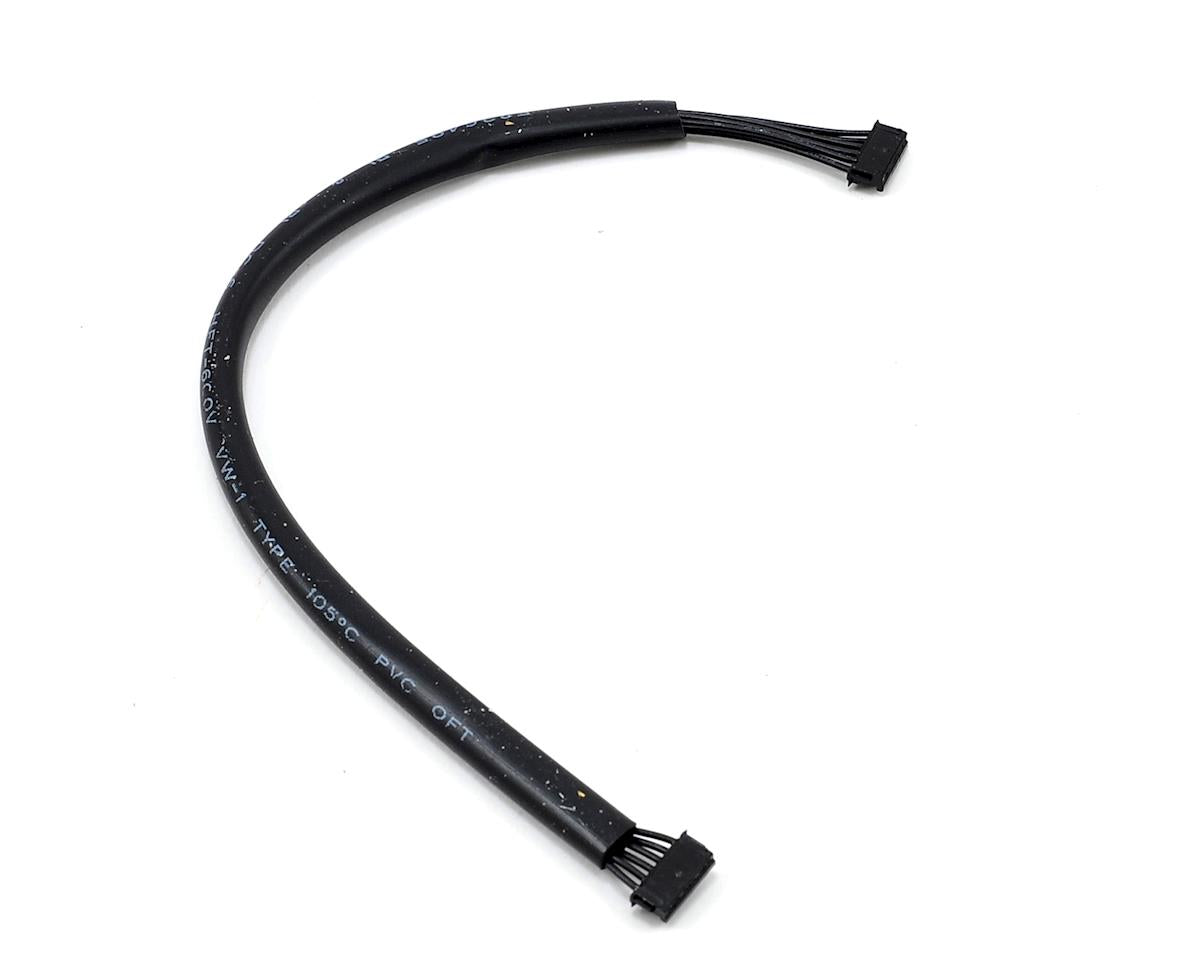

• Dual-Plug Sensor Wire Harness
• ABEC5 Precision High Speed Oversized Bearings
• Precision Engineered for Maximum Energy Conversion


Specifications

Motor:

• Motor Limit Brushed Mode: No Limit
• Max Current: 300A per phase
• Burst Current: 1000A per phase
• Timing Profiles: 7 choices (on board)
• Brushed Modes: FWD Only / FWD–REV / FWD–REV Delay
• Brushless Modes: FWD Only / FWD–REV / FWD–REV Delay
• Dimensions: 1.5 × 2.2 × 1.4" (38 × 55.8 × 35.5 mm)
• Weight: 2.7oz (76.5g)


ESC:

• KV: 2650 (rated for 4S)
• Weight: 311g / 11oz
• Shaft Dimensions: 5mm (0.125") × 19mm
• Motor Diameter: 40mm / 1.57" (42mm / 1.65" including fin)
• Motor Length: 69mm / 2.71"
• Bearing Dimensions:
  • Front: 5 × 16 × 5mm
  • Rear: 5 × 11 × 5mm
• Rotor Size: 18.5mm
• Rebuildable: Yes
